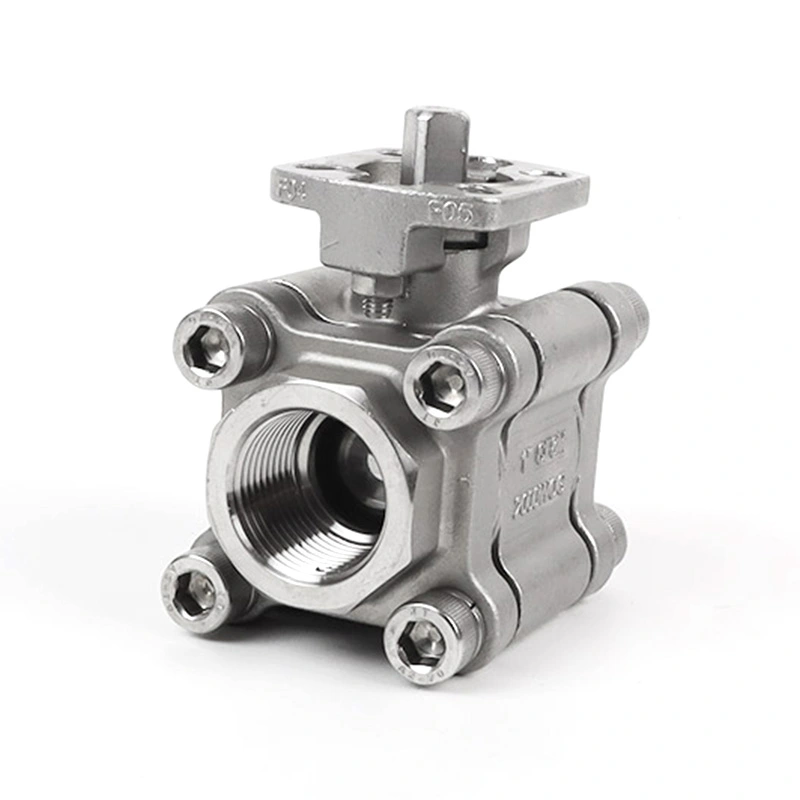

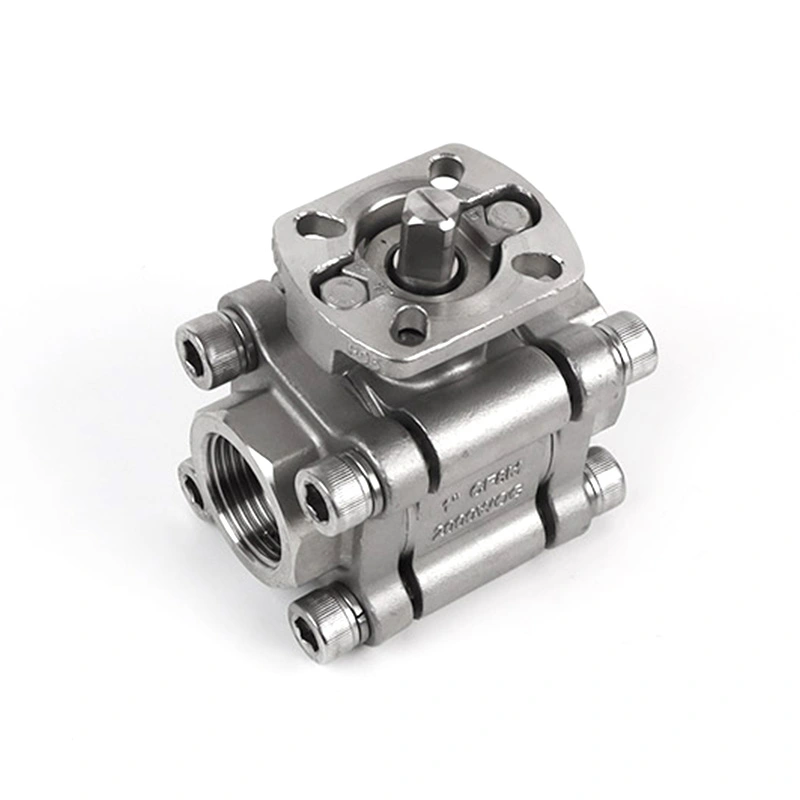

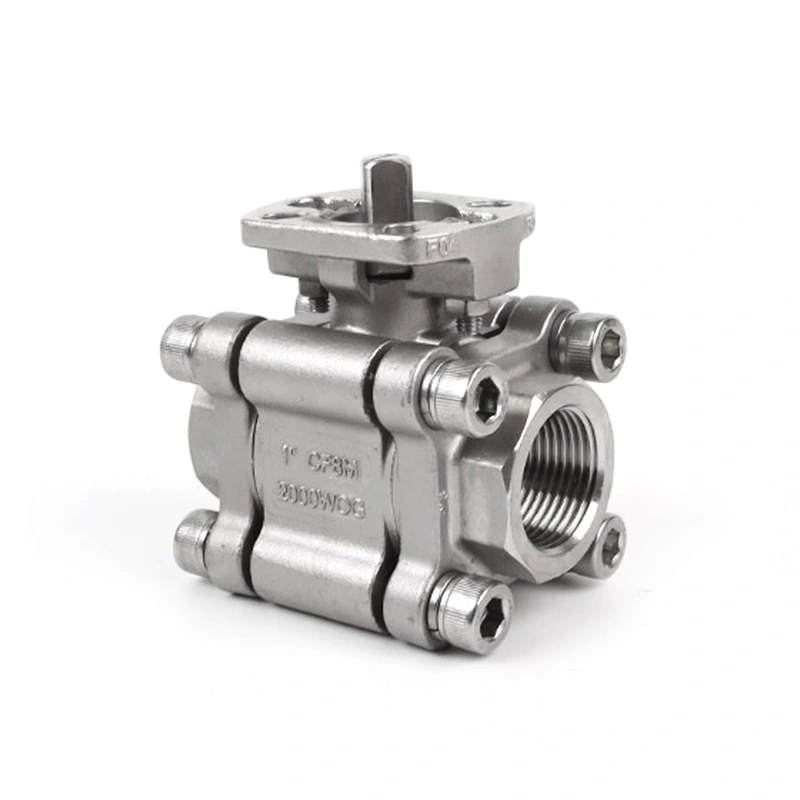

3PC Ball Valve 2000WOG with ISO 5211 Base for Actuator

Shangtai 3PC Ball Valve 2000WOG with ISO 5211 Base for Actuator is a three-piece stainless steel ball valve designed for manual or automated on-off service. The valve uses a 316 stainless steel body, ball and stem, with an ISO 5211 mounting base for actuator installation. It is available in NPT and BSP threaded connections and can be configured for different industrial media and operating conditions.

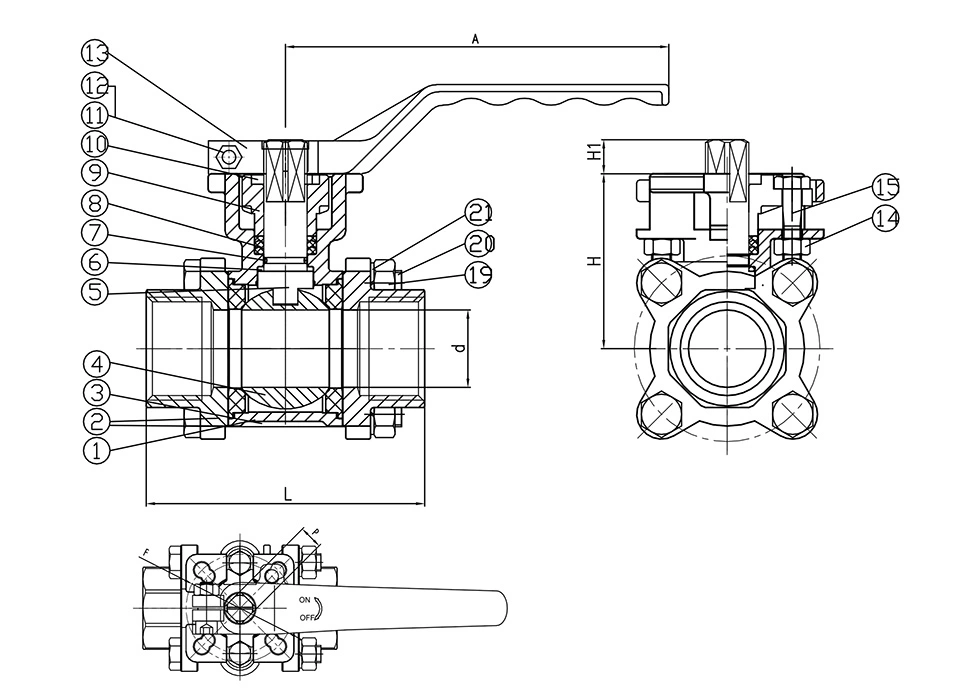

Main Dimensions

General Dimensions:

Actuator Mounting

The 3PC Ball Valve 2000WOG with ISO 5211 Base for Actuator is configured with an ISO 5211 mounting base for actuator installation. The mounting dimensions shown in the general dimensions table, including F and P, can be used when checking actuator compatibility. The required actuator should be selected according to valve size, operating torque and system requirements.

The three-piece body provides access to internal valve components when inspection or replacement is required. The stainless steel construction and RPTFE seat configuration can be selected for compatible industrial media and operating conditions.

Applications

This valve can be used for on-off fluid control in industrial piping systems, including water treatment, oil and gas service, chemical processing, compressed air, equipment skids and general process piping. Media compatibility should be confirmed from the body, seat and seal materials before selection.

For automated systems, the 3PC Ball Valve 2000WOG with ISO 5211 Base for Actuator can be paired with a suitable pneumatic or electric actuator according to the required control method and operating torque.

Precautions for Use

1. Confirm that the valve pressure and temperature ratings are suitable for the actual operating conditions before installation.

2. Check the actuator mounting dimensions and interface before selecting an actuator.

3. Select the valve seat, seals and other wetted components according to the working medium and temperature.

4. Avoid impact or excessive external force on the valve body, handle and threaded connections.

5. Installation, actuator mounting and maintenance should be carried out according to the applicable valve and pipeline procedures.

Shipping & Packaging

The valves are packed in corrugated cartons and plywood cases for export shipment. Packaging specifications can be adjusted according to valve size, order quantity and transportation requirements.

FAQ

1. What is the maximum working pressure of the 3PC Ball Valve 2000WOG with ISO 5211 Base for Actuator?

The listed maximum pressure is 1975 PSI. The allowable working pressure should be confirmed according to valve size, temperature, medium and the applicable pressure-temperature rating.

2. What is the purpose of the ISO 5211 base?

The ISO 5211 base provides a standardized actuator mounting interface. The actuator size and mounting dimensions should be checked against the valve's F and P dimensions before installation.

3. What materials are used for the valve?

The main configuration uses CF8M for the body and cap, 316 for the ball and stem, RPTFE for the seat, and PTFE, Viton and 304 stainless steel for other listed components.

4. Can the valve be used with pneumatic or electric actuators?

Yes. The valve can be configured for actuator operation. The actuator should be selected according to the valve size, operating torque, mounting interface and control requirements.

5. What connection standards are available?

The listed connection options are NPT and BSP threaded ends. The applicable connection should be confirmed when placing an order.

6. Can other materials be supplied?

Yes. Other materials are available upon request, subject to the required pressure, temperature, medium and component configuration.
