Reliable Mini Ball Valves Manufacturer for Compact Industrial Flow Control

Shangtai Mini Ball Valves are designed for small-diameter pipelines, equipment, and control systems where dependable shut-off is required in limited installation space. Their compact construction and quarter-turn operation provide a practical solution for quick flow isolation in water, air, pneumatic, HVAC, irrigation, instrumentation, and other light-duty systems.

Compared with larger industrial ball valves, mini designs are intended for compact pipework and equipment connections where installation space, valve size, and connection configuration are important selection factors. Shangtai supplies different body materials and connection options according to the working medium, pressure, temperature, and piping requirements.

Compact Construction for Limited Installation Space

The compact body is suitable for small-diameter pipework and equipment where a conventional full-size valve may require more installation space. The quarter-turn mechanism allows the valve to be opened or closed quickly, making it suitable for local shut-off and maintenance isolation.

For compact machinery, pneumatic equipment, water treatment units, HVAC assemblies, and instrumentation systems, valve dimensions and connection orientation should be considered together with the available installation space. Shangtai can review the application requirements before confirming the appropriate configuration.

Connection Options for Different Small-Diameter Pipelines

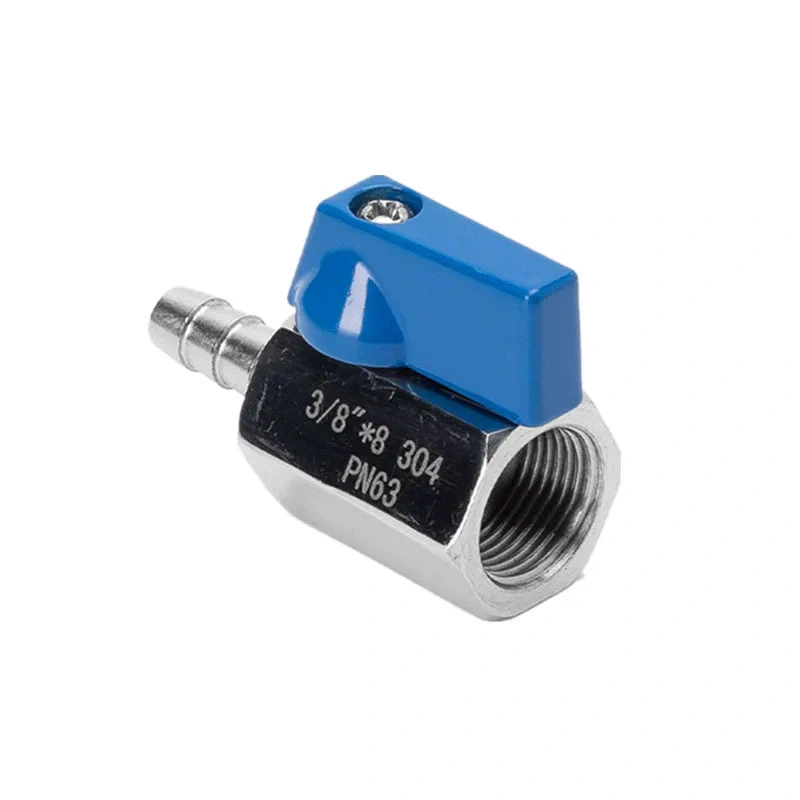

Mini ball valves can be supplied with connection configurations suited to different piping and equipment interfaces. Depending on the model, available options may include female threaded, male threaded, hose barb, compression, and push-in connections.

Threaded configurations can be selected with standards such as BSP, NPT, or metric threads according to the existing piping system. Connection compatibility should be confirmed before ordering to avoid installation issues.

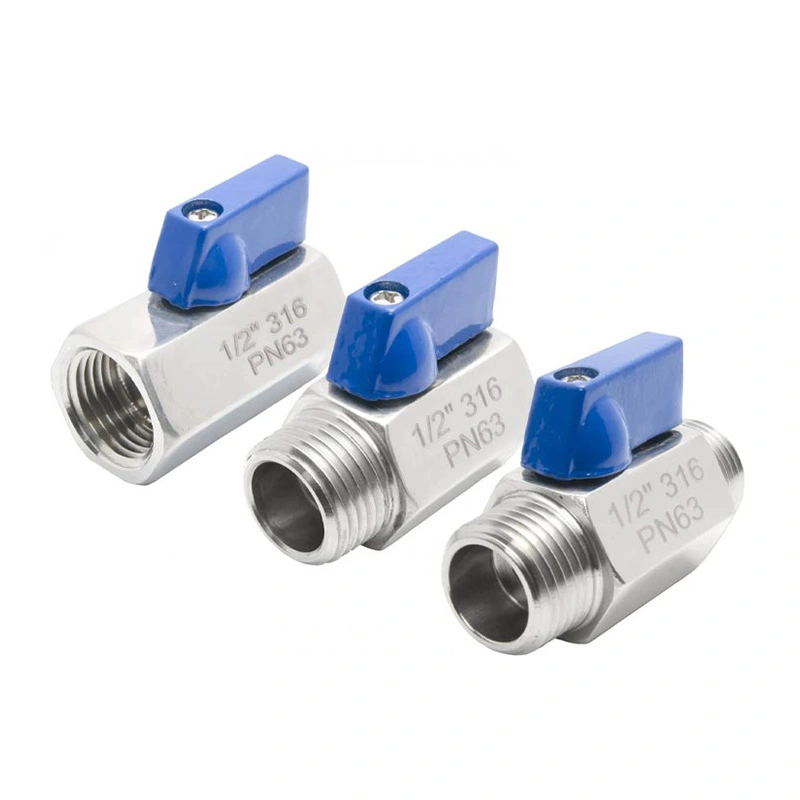

Brass and Stainless Steel Body Options

Material selection should be based on the working medium and service environment rather than valve size alone. Brass is commonly used for general water, air, and other non-corrosive services, while stainless steel can be considered when greater corrosion resistance or cleaner material conditions are required.

The sealing material is also important because temperature, pressure, and chemical compatibility can affect service performance. When requesting a quotation, provide the working medium and operating conditions so the body and sealing configuration can be reviewed accordingly.

On/Off Flow Isolation for Small-Diameter Systems

Mini ball valves are primarily designed for fully open or fully closed flow control. Their quarter-turn operation allows the operator to isolate a line quickly during equipment operation, maintenance, or troubleshooting.

They are not generally intended for precise continuous throttling. Where accurate flow adjustment is required, a needle valve or dedicated control valve may provide a more appropriate solution.

Product Applications

Their compact dimensions and multiple connection options make these valves suitable for a range of small-diameter piping and equipment applications, including:

• Water supply and small water lines
• Compressed air and pneumatic equipment
• HVAC units and compact fluid systems
• Irrigation and agricultural equipment
• Instrumentation and small control systems
• Small machinery and equipment assemblies
• Water treatment equipment
• Compatible oil and gas applications

For applications involving corrosive chemicals, high temperature, high pressure, or special gases, the valve configuration should be confirmed against the actual operating conditions before selection.

Pressure and Installation Considerations

The applicable pressure rating depends on the valve size, body material, internal construction, sealing material, and connection type. A compact valve should not be selected based only on nominal pipe size. Working pressure and temperature should be checked against the specific valve configuration.

Most two-way designs can handle flow in either direction when the construction permits bidirectional operation. If a particular model has a marked flow direction, the valve should be installed according to the manufacturer's instructions and the pipeline design.

For installations in confined equipment spaces, check the overall valve dimensions, handle clearance, thread orientation, tubing access, and maintenance space before finalizing the configuration.

Manufacturing and Quality Control

Shangtai manufactures valves according to defined product specifications and reviews key parameters such as body material, connection dimensions, sealing configuration, pressure requirements, and operating method during production. Applicable inspection and pressure testing can be arranged according to the product specification and project requirements.

For OEM or project orders, customers can provide drawings, technical specifications, connection standards, application information, or samples for configuration review. This is particularly useful when the valve must match existing equipment or a specific tubing system.

How to Specify the Right Mini Ball Valve

Before requesting a quotation, prepare the following information:

• Nominal valve or pipe size
• Body material, such as brass or stainless steel
• Connection type and thread standard
• Working medium
• Working pressure
• Operating temperature
• Required quantity
• Handle type or other configuration requirements
• Surface treatment requirements, if applicable

If the valve is intended for an existing machine or piping assembly, drawings, photographs, connection dimensions, or sample parts can also help confirm compatibility.

Frequently Asked Questions

Send Inquiry or Contact Shangtai Valve for technical assistance with valve selection, specifications, and project requirements.
