Gate Valves
Industrial Gate Valves Manufacturer for Reliable Flow Control in Pipeline Applications
Shangtai Gate Valves are designed for reliable isolation in industrial piping systems where the valve is normally operated in the fully open or fully closed position. The gate moves vertically away from the flow path when opened, providing a straight-through passage that helps reduce flow resistance during normal operation.
Shangtai manufactures gate valve solutions for water supply, wastewater treatment, oil and gas pipelines, chemical processing, power generation, mining, HVAC, and general industrial utilities. Different body materials, pressure ratings, end connections, sealing designs, and operating methods can be selected according to the pipeline medium and service conditions.
Industrial Gate Valve Supply and Customization
Shangtai supports standard and customized valve configurations based on size, pressure class, connection standard, body and trim material, seat design, operating method, and project specifications. Contact our team for technical confirmation and a quotation.
Product Types and Construction Options
Different pipeline systems require different gate designs. Shangtai can provide configurations selected according to installation conditions, operating frequency, sealing requirements, and the characteristics of the conveyed medium.
Rising Stem Gate Valves
The stem moves upward as the valve opens, providing a visible indication of the valve position. This configuration is commonly used where installation space allows sufficient clearance above the valve.
Non-Rising Stem Designs
The stem remains within the valve body or bonnet during operation, making this configuration suitable for locations where vertical clearance is limited.
OS&Y Gate Valves
Outside screw and yoke construction keeps the threaded stem outside the valve body and provides clear visual indication of the open or closed position.
Wedge Gate Valves
Solid wedge and flexible wedge configurations are available for different pressure, temperature, sealing, and pipeline service requirements.
Resilient Seated Designs
Resilient seated configurations use an elastomeric seat to provide sealing performance for suitable water and utility applications.
Metal Seated Designs
Metal seated construction can be selected for applications where the valve requires a metal-to-metal sealing arrangement and higher resistance to demanding service conditions.
Materials for Different Pipeline Media
Material selection should consider the working medium, temperature, pressure, corrosion conditions, and mechanical requirements of the piping system. Depending on the valve design, available materials may include cast iron, ductile iron, cast steel, stainless steel, bronze, and alloy steel.
Cast Iron and Ductile Iron
Commonly used for water supply, wastewater, HVAC, and general utility pipelines where the service conditions are suitable.
Carbon and Cast Steel
Suitable for selected industrial, oil and gas, power, and process applications requiring higher mechanical strength.
Stainless Steel
Used where improved corrosion resistance is required, with the appropriate grade selected according to the medium and operating environment.
Bronze and Alloy Materials
Material options can be considered for specific fluid characteristics, temperature conditions, corrosion requirements, or project specifications.
Pressure, Connection and Operation Options
Valve configuration should match the pipeline design rather than being selected by size alone. Shangtai can configure gate valves according to nominal size, pressure rating, end connection, installation conditions, and required actuation.
Key selection parameters: Valve size, pressure class, working temperature, medium, connection standard, body material, trim material, seat type, installation position, operation method, and applicable project standards.
Depending on the product configuration, connection options may include flanged, threaded, socket weld, butt weld, or other specified end connections. The selected connection should correspond to the existing pipeline standard and installation requirements.
For manual operation, handwheels, gearboxes, chain wheels, and extension stems can be considered. Where remote or automated operation is required, electric, pneumatic, or hydraulic actuation can be configured according to the valve size, operating torque, control system, and installation environment.
Where Gate Valves Are Used
These valves are primarily used for pipeline isolation rather than continuous throttling. Their straight-through flow path makes them suitable for systems where low flow resistance in the fully open position and dependable shut-off are important.
Water and Wastewater
Used in water distribution, treatment plants, pumping stations, wastewater systems, and utility pipelines for sectional isolation and maintenance.
Oil and Gas
Selected for suitable pipeline and process services where reliable isolation is required, subject to the applicable pressure, material, and standard requirements.
Chemical Processing
Material and sealing configurations can be selected according to the chemical medium, temperature, pressure, and corrosion conditions.
Power and Industrial Utilities
Used in utility, cooling, steam-related, process, and other industrial pipeline systems where the selected valve design meets the service conditions.
Manufacturing and Quality Control
Shangtai integrates valve manufacturing, inspection, sales, and technical service to support different industrial pipeline requirements. Production and inspection processes focus on dimensional accuracy, pressure performance, sealing condition, material requirements, and overall valve function.
Shangtai products are certified according to applicable requirements including ISO 9001, CE, and EAC. Selected products can also be manufactured and tested in accordance with standards such as API 6D and API 598 when required by the project.
Standards and Inspection Requirements
When requesting a quotation, please specify the required design standard, pressure class, connection standard, material, testing standard, and certification documents. This allows the valve configuration and inspection requirements to be confirmed before production.
Technical Support for Valve Selection
Choosing a gate valve involves more than matching the nominal pipe diameter. The working medium, pressure, temperature, installation position, connection dimensions, operating frequency, and required sealing performance should all be considered. Shangtai can review these parameters and recommend a suitable configuration based on the actual pipeline conditions.
For project requirements involving multiple valve sizes or specifications, you can also provide pipeline drawings, valve schedules, technical specifications, or existing valve information. Our team can review the available data before preparing a quotation.
For more valve products and available configurations, visit the Shangtai valve product range.
Frequently Asked Questions
What types of gate valves are available?
Common configurations include rising stem, non-rising stem, OS&Y, resilient seated, metal seated, solid wedge, and flexible wedge designs. The suitable construction depends on the pipeline application and operating conditions.
How do I select the right valve?
Selection should consider valve size, pressure rating, working temperature, medium, connection type, installation space, operation method, sealing requirements, and project specifications.
What materials are available?
Depending on the configuration, body materials may include cast iron, ductile iron, cast steel, stainless steel, bronze, and alloy steel. Seat and trim materials should be selected according to the medium and operating conditions.
Are gate valves suitable for flow regulation?
They are generally intended for fully open or fully closed isolation rather than continuous throttling. Globe valves or dedicated control valves are normally considered when precise flow regulation is required.
What operation methods are available?
Depending on the valve size and installation conditions, operation methods may include handwheel, gearbox, electric actuator, pneumatic actuator, hydraulic actuator, chain wheel, and extension stem.
What should be checked before installation?
Confirm the valve size, pressure class, end connection, gasket compatibility, bolt alignment, pipeline cleanliness, installation space, and stem or actuator movement clearance before installation.
Can these valves be used for underground installation?
Yes, when the selected configuration is suitable for buried service. Depending on the installation, extension stems, protective coatings, appropriate sealing materials, and suitable valve box arrangements may be required.
What information is needed for a quotation?
Please provide the valve size, pressure rating, connection standard, body and trim material, seat type, working medium, temperature, operation method, quantity, required standards, and any drawings or technical documents.
Need a Gate Valve Configuration?
Send your valve size, pressure rating, medium, connection standard, material, and operation requirements to Shangtai for technical confirmation and a quotation.
- View as

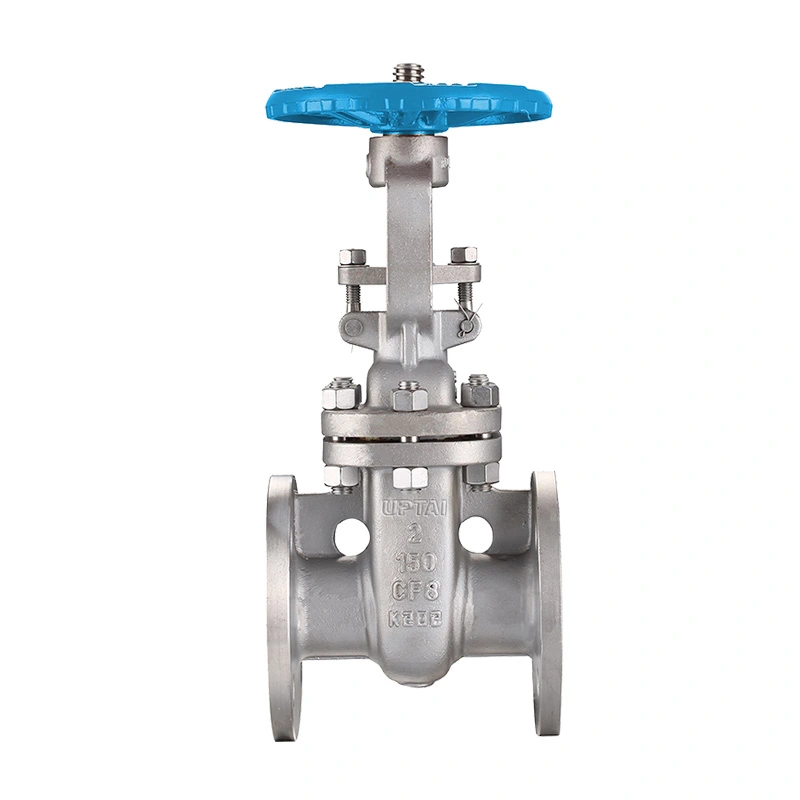

ANSI 150LB Stainless Steel Gate Valve
ANSI 150LB stainless steel gate valve designed in accordance with API 603 and ASME B16.34. It features RF flanged ends, Stellite 6 hard-faced seats and NACE requirements for industrial pipeline service, providing bi-directional shutoff and a straight-through flow path with low pressure loss.

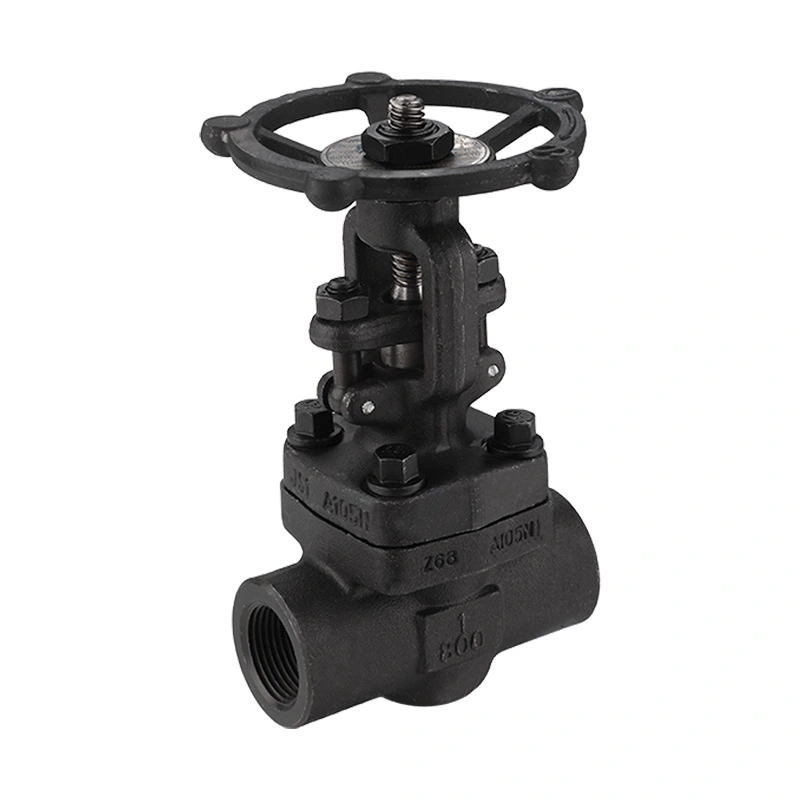

Forged Carbon Steel Gate Valve 800LB
Our Forged Carbon Steel Gate Valve 800LB is engineered to API 602 standards for high-pressure pipelines. Featuring a robust forged A105 body, OS&Y design, and reliable bi-directional shutoff, it delivers exceptional durability and flow control for demanding industrial systems.
