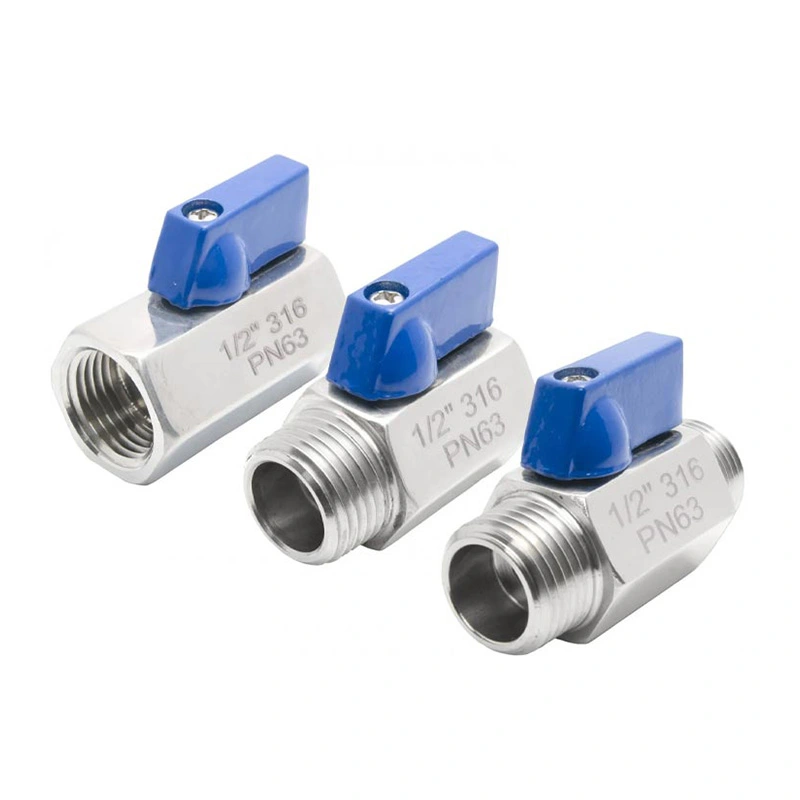

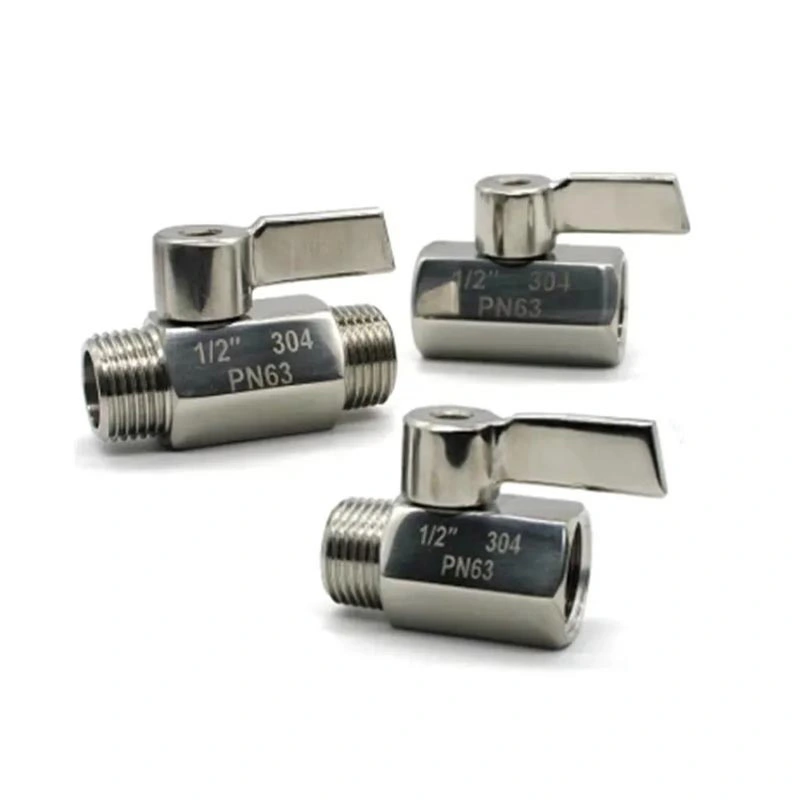

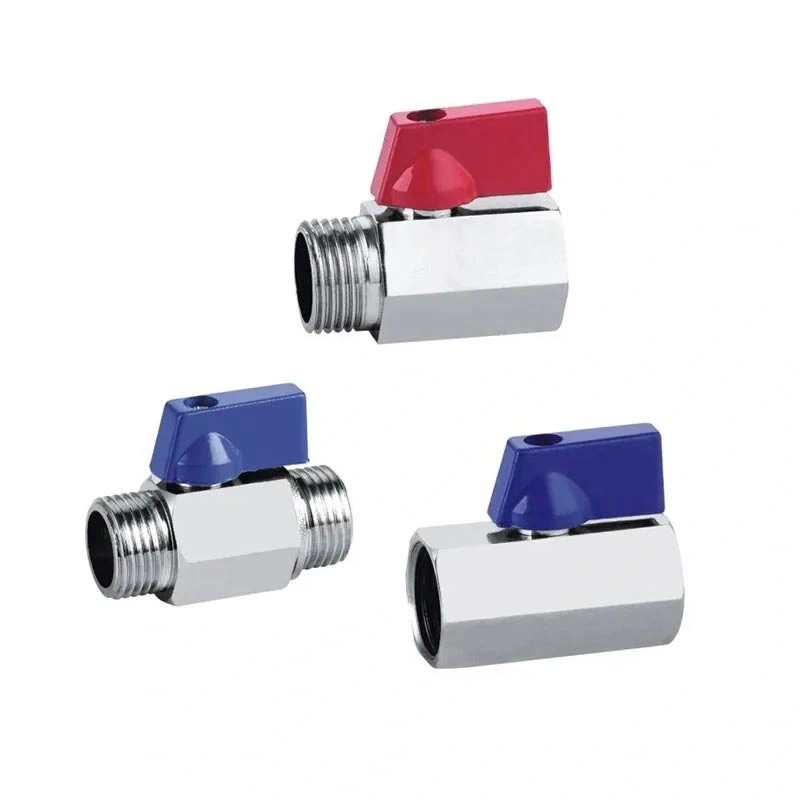

Stainless Steel Mini Ball Valve

The Stainless Steel Mini Ball Valve is designed for compact piping and equipment where space is limited but a quarter-turn shut-off valve is required. Its stainless steel body, threaded NPT or BSP connections and compact operating handle make it suitable for small pipeline assemblies, instruments and fluid-handling equipment. The valve can be selected according to the required pressure, temperature, medium and connection specification.

Main Dimensions

Product Structure and Features

Compact Quarter-Turn Operation

The valve uses a quarter-turn ball mechanism for on/off service. Rotating the handle changes the position of the ball and opens or closes the flow passage. This operating method is suitable for applications where the valve needs to be operated frequently or where a simple shut-off function is required.

316 Stainless Steel Construction

The valve body is specified as ASTM A351 CF8M (316), with ASTM A182 F316 used for the ball and stem. This material combination provides a stainless steel construction for applications where corrosion resistance and material compatibility are important. The actual suitability should be checked against the process medium and operating conditions.

NPT and BSP Threaded Connections

The valve is available with NPT and BSP threaded connections for integration with compatible piping and equipment. Thread type should be confirmed before ordering because NPT and BSP threads use different thread standards and should not be treated as interchangeable connections.

RPTFE Seat Configuration

The standard seat material is RPTFE (PTFE+15%fv). Seat selection should take into account the working medium, operating temperature and pressure. Where the application involves aggressive chemicals or special process fluids, material compatibility should be confirmed before valve selection.

Selection Considerations

Selecting a small ball valve requires more than matching the pipe size. The working medium, pressure, temperature, connection type and available installation space should all be considered. The valve's pressure and temperature limits should be checked against the actual operating conditions before installation.

For threaded installations, confirm whether the pipeline uses NPT or BSP threads. For equipment with restricted access, check the handle position and available clearance around the valve. The seat and sealing materials should also be compatible with the process fluid to avoid premature component wear.

Application Scenarios

The Stainless Steel Mini Ball Valve can be used for shut-off service in compact fluid systems and equipment where a smaller valve arrangement is required. Typical applications include:

Water supply and drainage systems

Pneumatic equipment and compressed air lines

Instrumentation and testing equipment

Small machinery and automation equipment

Cooling systems and filtration units

Laboratory and plumbing installations

Light industrial fluid handling systems

Installation and Maintenance

Before installation, verify the valve size, thread type, pressure rating, temperature range and material compatibility. Clean the pipe threads and remove foreign particles that could affect the connection or sealing surface. Use an appropriate thread sealing method for the selected connection and avoid excessive tightening force.

After installation, operate the handle through its full quarter-turn range and check the connection for leakage during system commissioning. During maintenance, isolate the valve from the pressure source before inspection or replacement of internal components.

Quality and Documentation

Production inspection can include dimensional checks, material verification, assembly inspection and pressure or sealing tests according to the applicable product and order requirements. Product drawings and technical specifications can be provided for dimension confirmation and project selection. Material documentation and inspection records can also be arranged where required.

FAQ

Q1: What is a Stainless Steel Mini Ball Valve used for?

A Stainless Steel Mini Ball Valve is mainly used for on/off fluid control in compact piping, equipment and instrument systems. It is suitable for compatible water, air, oil and other industrial media within the specified pressure and temperature range.

Q2: What is the difference between NPT and BSP threads?

NPT and BSP are different thread standards with different thread profiles and specifications. The valve thread must match the mating pipe or fitting, so the required thread standard should be confirmed before ordering.

Q3: What materials are used for the valve?

The standard configuration uses ASTM A351 CF8M (316) for the body, ASTM A182 F316 for the ball and stem, and RPTFE (PTFE+15%fv) for the seat. Other materials are available upon request.

Q4: What pressure and temperature can the valve handle?

The listed maximum pressure is 285PSI and the temperature range is -25℃~150℃. Actual allowable operating conditions should be confirmed according to valve size, medium, temperature and the applicable pressure-temperature rating.

Q5: Can I request a product drawing before ordering?

Yes. Dimensional drawings and technical specifications can be provided to confirm valve size, connection type, installation dimensions and other required parameters before production.

Q6: Can the valve material be verified?

Yes. Material verification and related inspection documentation can be arranged according to the valve configuration and order requirements. The applicable inspection scope should be confirmed when placing the order.

Q7: Are different materials available?

Yes. Other body, ball, stem, seat and sealing material combinations can be considered for specific operating conditions, subject to the required pressure, temperature and medium compatibility.
