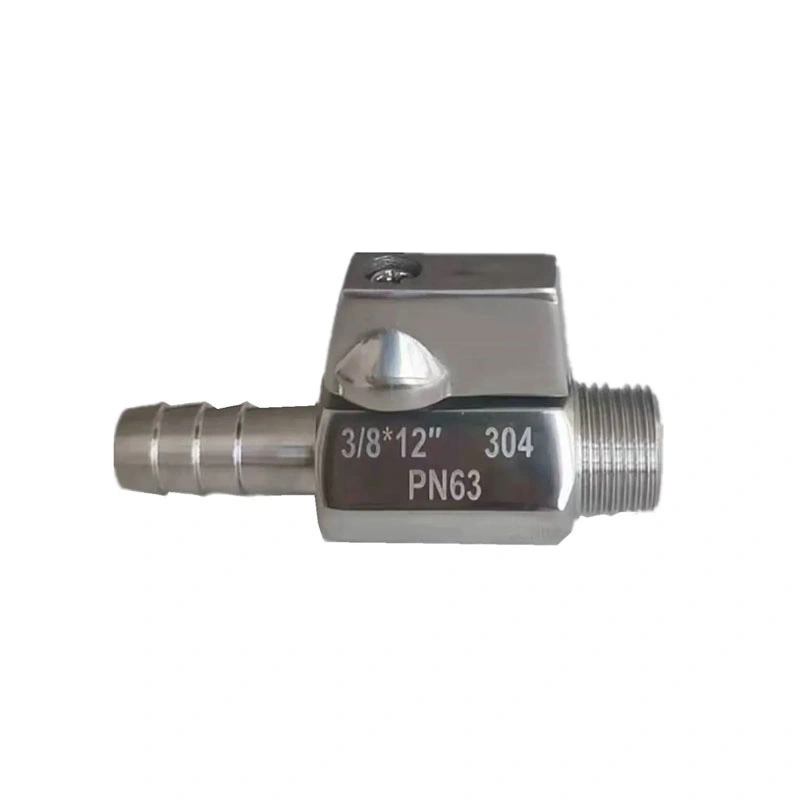

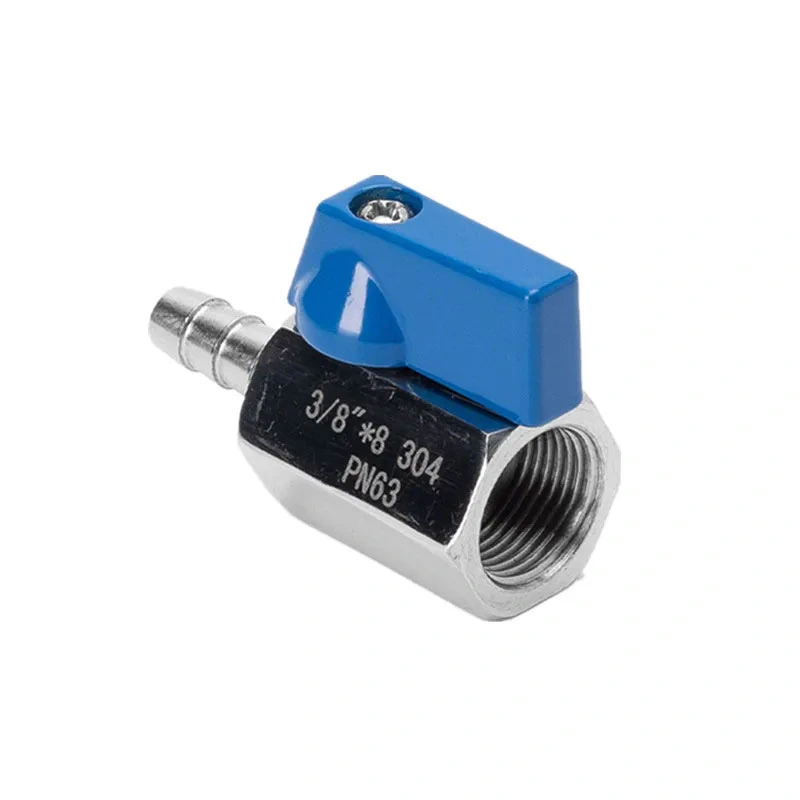

Stainless Steel Threaded Nipple Hose Mini Ball Valve

Compact fluid lines often require a valve that can connect threaded piping and flexible hoses within a limited installation space. The Stainless Steel Threaded Nipple Hose Mini Ball Valve combines a threaded nipple with a hose connection in one assembly, providing convenient on/off control through a quarter-turn operating mechanism. Its compact configuration is suitable for equipment and piping layouts where space is restricted.

Main Dimensions

Product Structure and Features

Threaded and Hose Connection

The valve combines a threaded connection with a hose nipple in one compact assembly. The threaded side can be connected to compatible NPT or BSP piping components, while the nipple side is intended for a suitable flexible hose and clamp arrangement. The hose inside diameter and connection dimensions should be confirmed before installation.

316 Stainless Steel Construction

The valve body is specified as ASTM A351 CF8M (316), with ASTM A182 F316 used for the ball and stem. This stainless steel construction is suitable for applications where material compatibility and corrosion resistance are required. The actual suitability depends on the working medium, concentration, temperature and other service conditions.

Quarter-Turn Shut-Off

The ball mechanism provides a quarter-turn opening and closing operation. The handle position indicates the valve's operating state, allowing the valve to be used for straightforward on/off isolation in compact fluid systems. This valve is intended for shut-off service rather than precise flow regulation.

RPTFE Seat

The standard seat is RPTFE (PTFE+15%fv). The seat material should be checked against the process medium and operating temperature before selection. Different material combinations can be considered for applications requiring specific chemical or temperature compatibility.

Thread and Hose Connection Selection

NPT and BSP are different thread standards and should not be treated as interchangeable. The valve thread must match the mating fitting or pipeline connection. When connecting the hose nipple, select a hose with a compatible internal diameter and use an appropriate clamp or connection method for the operating conditions.

For equipment with limited space, check the overall valve dimensions and handle clearance before installation. The hose should also be routed without excessive bending, twisting or external loading on the valve connection.

Application Scenarios

The Stainless Steel Threaded Nipple Hose Mini Ball Valve is suitable for compact fluid lines where hose connection and manual shut-off are required. Typical applications include:

Hose water supply and drainage lines

Compressed air and pneumatic equipment

Filtration, cooling and cleaning equipment

Pump connections and drain outlets

Sampling and laboratory equipment

Irrigation and spraying systems

Light industrial fluid handling equipment

Installation and Maintenance

Before installation, confirm the valve size, NPT or BSP thread type, hose connection size, working pressure and temperature. Clean the mating connections and make sure the sealing surfaces are free from dirt or foreign particles. Threaded connections should be tightened using an appropriate method without applying excessive force to the valve body.

After installation, check the hose connection and threaded joint during system commissioning. Operate the handle through its full quarter-turn range to confirm smooth movement. Before maintenance, isolate the valve from the pressure source and release residual pressure from the connected line.

Pressure and Temperature Considerations

The listed maximum pressure is 285PSI and the specified temperature range is -25℃~150℃. These values should be considered together with the valve size, working medium and applicable pressure-temperature rating. The actual operating conditions should be confirmed before the valve is installed in the system.

Technical Documentation

Product drawings and technical specifications can be provided for dimension confirmation and project selection. Material information, inspection records and other applicable product documents can also be arranged according to the valve configuration and order requirements.

FAQ

Q1: What is a Stainless Steel Threaded Nipple Hose Mini Ball Valve used for?

A Stainless Steel Threaded Nipple Hose Mini Ball Valve is used for manual on/off control in compact fluid systems that combine a threaded pipeline connection with a flexible hose connection. It can be used with compatible water, air, oil and other media within the specified operating limits.

Q2: Can the valve connect directly to a flexible hose?

The nipple side is designed for connection to a compatible hose using an appropriate hose connection and clamp arrangement. The hose size, internal diameter and connection method should be matched to the valve dimensions and operating conditions.

Q3: Are NPT and BSP versions available?

Yes. The listed thread standards are NPT and BSP. The required thread type should be specified when ordering so that it matches the mating pipe, fitting or equipment connection.

Q4: Is this valve suitable for compressed air systems?

Yes, it can be considered for compatible compressed air applications within the specified pressure and temperature limits. The valve size, connection method and sealing materials should be checked against the actual pneumatic system requirements.

Q5: What material is used for the valve body?

The standard body material is ASTM A351 CF8M (316). The ball and stem are ASTM A182 F316, while the seat is RPTFE (PTFE+15%fv). Other materials are available upon request.

Q6: Can I request a drawing before placing an order?

Yes. Dimensional drawings and technical specifications can be provided to confirm the valve size, thread type, hose connection and installation dimensions before production.

Q7: What information is needed for valve selection?

Please provide the required size, NPT or BSP thread standard, hose size, working medium, pressure, temperature and installation requirements. This information helps confirm the appropriate valve configuration.
