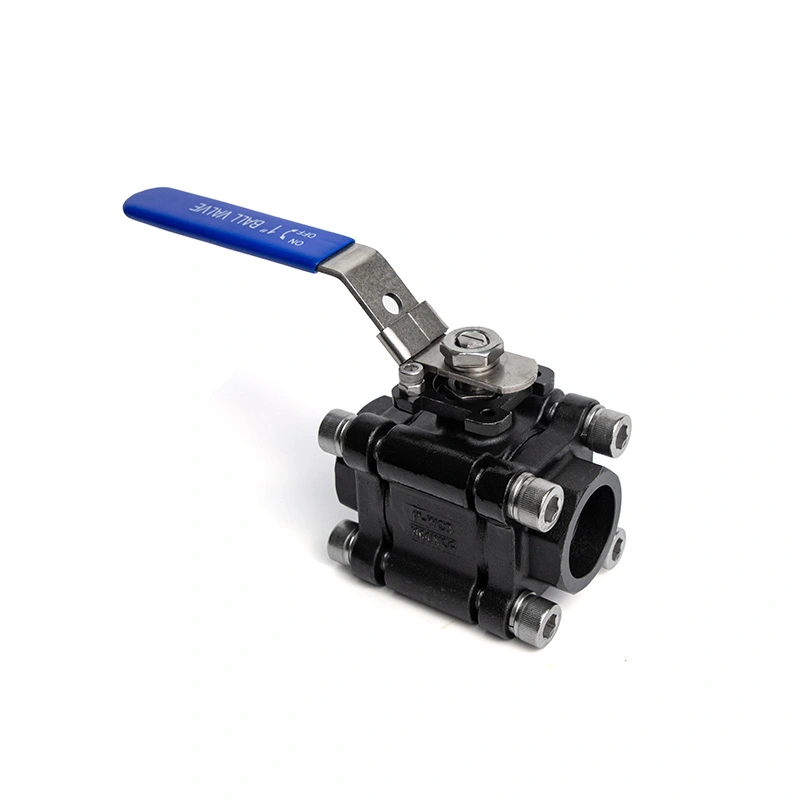

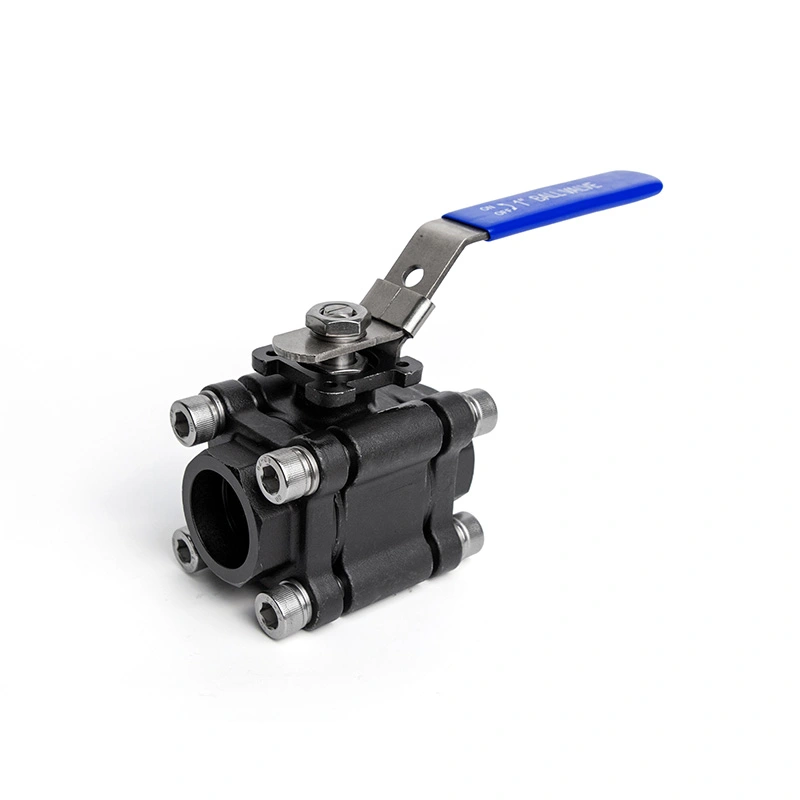

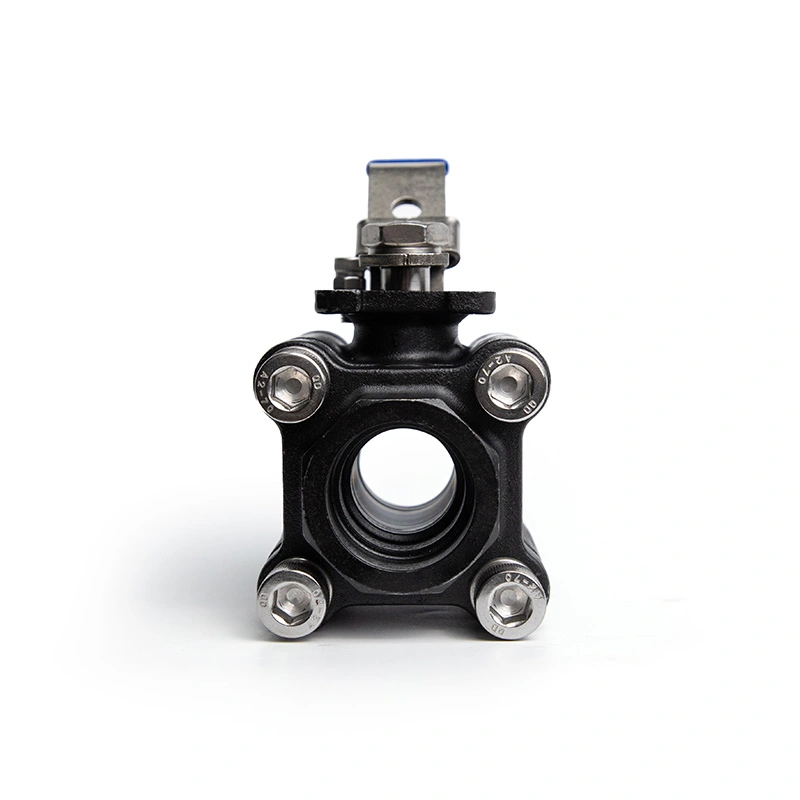

3PC Carbon Steel Ball Valve 2000WOG

3PC Carbon Steel Ball Valve 2000WOG is a three-piece ball valve with an extended stem for insulated pipelines, buried installations and applications where the operating point needs to be extended. The 2000WOG rating and three-piece construction make it suitable for high-pressure on-off fluid control. The valve can be disassembled for inspection and replacement of seats or seals.

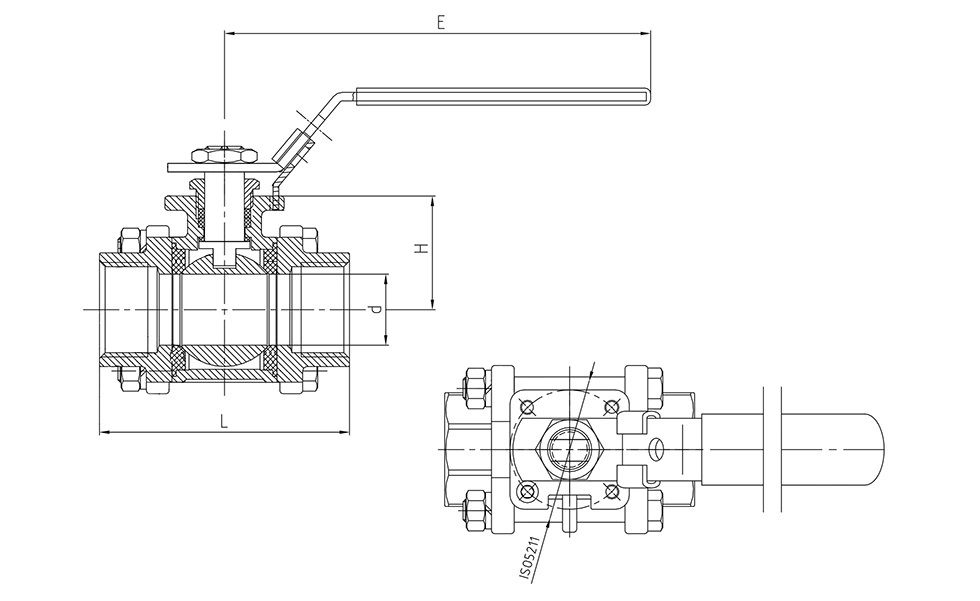

Main Dimensions

N: Thread ends according ANSI B 2.1 NPT
B:Thread ends according BS21 BSP

Key Features

1. Extended Stem for Special Installation Conditions

The extended stem provides access to the valve operating point when the pipeline is insulated, buried or installed in a location with limited access. The anti-blowout stem structure helps retain the stem inside the valve body when the valve is under pressure.

2. Three-Piece Construction

The three-piece body allows the valve to be opened for inspection and maintenance. Seats, seals and other internal components can be accessed for replacement when required. This construction is practical for industrial pipeline systems where periodic maintenance is required.

3. 1975PSI Maximum Pressure

The 3PC Carbon Steel Ball Valve 2000WOG is listed with a maximum pressure of 1975PSI. The applicable working pressure depends on valve size, temperature, medium and the pressure-temperature rating. The 2000WOG designation refers to water, oil and gas service under the applicable rating conditions.

4. NPT and BSP Connections

The valve is available with NPT and BSP threaded connections. Connection selection should match the pipeline standard and installation requirements.

Materials and Standards

The supplied configuration uses ASTM A351 316 for the valve body, ASTM A182 F316 for the ball and stem, and RPTFE (PTFE+15%fv) for the seat. Other materials are available upon request according to the required service conditions.

Design and manufacturing are based on ISO 17292/API 608. Testing and inspection follow API 598, while pressure-temperature ratings are referenced to ASME B16.34. The listed temperature range is -25℃ to 150℃.

Quality Control

Production inspection covers incoming material verification, pressure testing, sealing tests and finished valve inspection. Material test reports and applicable product documentation can be provided according to the valve configuration and order requirements.

ISO 9001 and CE documentation is available for applicable configurations. Material, seat and sealing components can also be selected according to the required pressure, temperature and medium.

Applications

The 3PC Carbon Steel Ball Valve 2000WOG can be considered for high-pressure on-off service in industrial piping systems, including water treatment, oil and gas, chemical processing, compressed air and general fluid control. The extended stem is particularly useful where insulation or installation depth makes a standard valve stem difficult to access.

Before selection, confirm the working pressure, temperature, medium, valve size, connection type and available installation space. Material compatibility should be checked for the body, ball, stem and seat.

FAQ

1. What is the maximum working pressure of the 3PC Carbon Steel Ball Valve 2000WOG?

The product data lists a maximum pressure of 1975PSI. The actual allowable working pressure should be confirmed according to valve size, temperature, medium and the applicable pressure-temperature rating.

2. What is the extended stem used for?

The extended stem is used for insulated pipelines, buried installations and locations where the valve operating point needs to be positioned away from the pipeline connection.

3. What thread connections are available?

NPT and BSP threaded connections are available. The connection should be selected according to the pipeline standard and installation requirements.

4. Can the valve materials be customized?

Yes. Other body, ball, stem, seat and sealing materials can be supplied according to the required medium, pressure and temperature.

5. What documents can be provided?

Material test reports and applicable inspection or product documents can be provided according to the valve configuration and order requirements. ISO 9001 and CE documentation is available for applicable configurations.

6. How is the valve packaged for export?

The valves are packed in corrugated cartons and plywood cases for export shipment. Packaging specifications can be adjusted according to valve size, quantity and transportation requirements.
