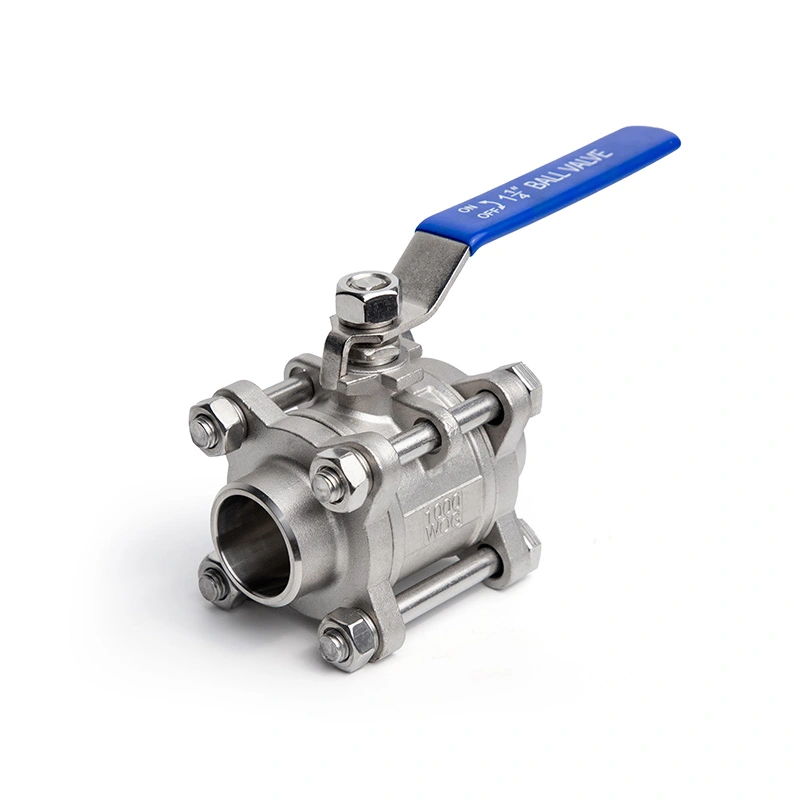

3PC Butt-welded Ends Stainless Steel Ball Valve
Shangtai 3PC Butt-welded Ends Stainless Steel Ball Valve features robust 3-piece construction and leak-proof butt-weld ends for high-pressure industrial piping. Made of premium stainless steel with excellent corrosion resistance, it enables convenient in-line maintenance. As a direct factory with strict QC and export-grade packaging, we deliver reliable fluid control solutions for diverse applications.

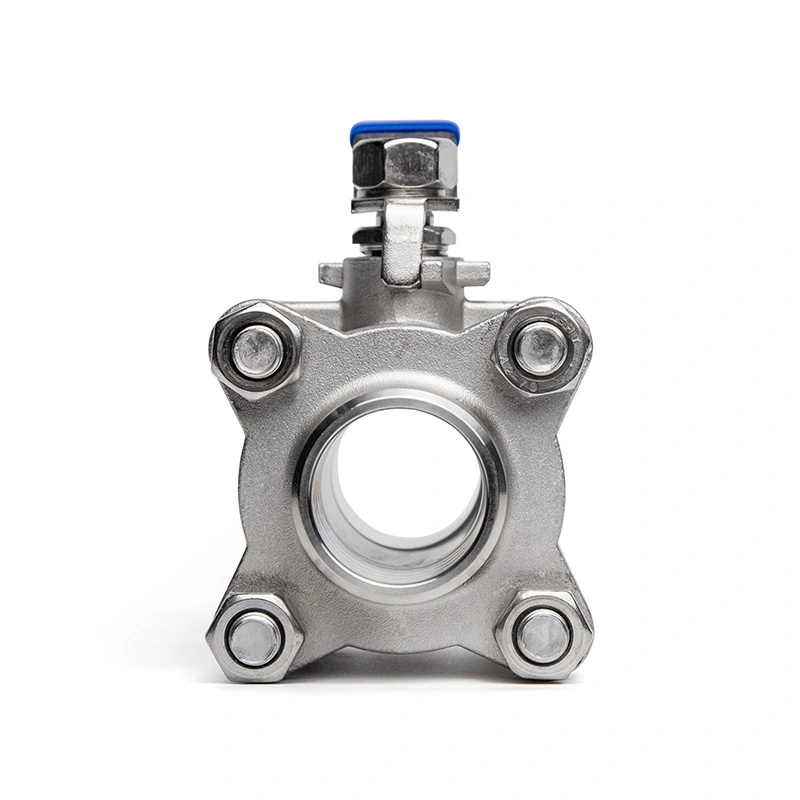

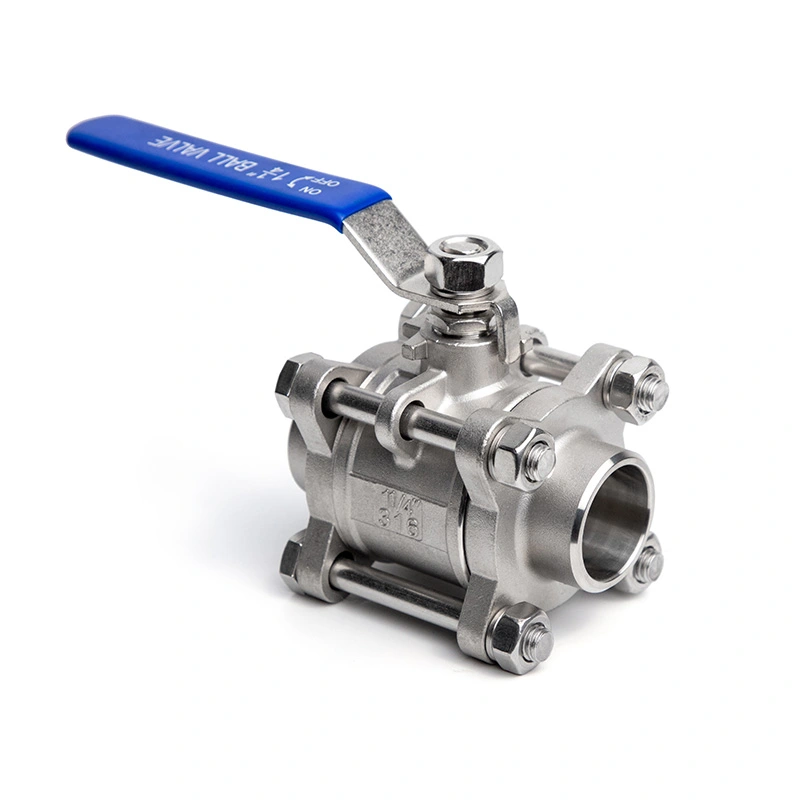

The 3PC Butt-welded Ends Stainless Steel Ball Valve features a three-piece stainless steel body with butt-weld ends for permanent pipeline connections. The three-piece construction allows access to internal components for inspection and seal replacement after the pipeline has been isolated and depressurized. Sealing materials can be selected according to the working medium, pressure and temperature. It is used in petrochemical, oil and gas, water treatment and thermal energy piping systems.
Main Dimensions
| Size | 1/4" - 6" |
| Pressure Class | CL150 |
| Butt-weld ends | ASME B16.25 |
| Max Pressure | 285PSI |
| Design and manufacturing standards | ASME B16.34 |
| Testing and inspection | API598 |
| Pressure-Temperature Ratings | ASME B16.34 |
| Temperature Range | -25℃~150℃ |
| Body material | ASTM A351 CF8M（316） |
| Ball Material | ASTM A182 F316 |
| Stem Material | ASTM A182 F316 |
| Seat Material | RPTFE(PTFE+15%fv) |
| Options | Other materials are available upon request. |

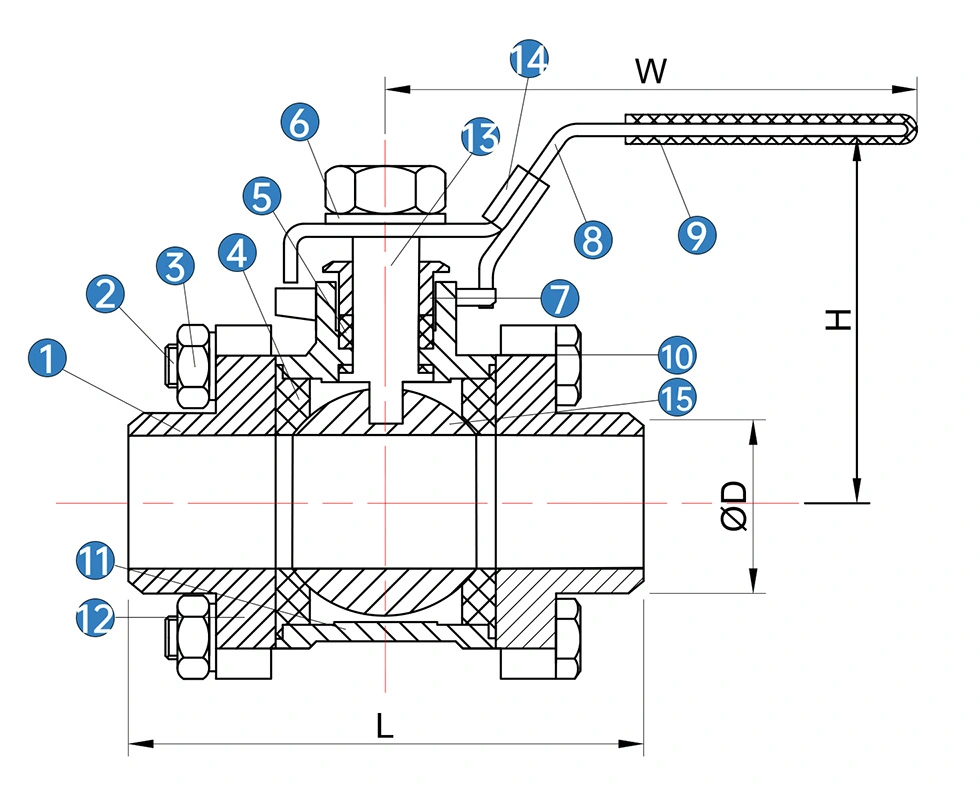

| No | Name | Material(*N/B) | Material(*N/B) |
| 1 | Cap | SS 316 | SS 304 |
| 2 | Bolt | SS 304 | SS 304 |
| 3 | Nut | SS 304 | SS 304 |
| 4 | Ball Seat | PTFE | PTFE |
| 5 | Stem packing | PTFE | PTFE |
| 6 | Spring Washer | SS 304 | SS 304 |
| 7 | Gland | SS 316 | SS 304 |
| 8 | Handle | SS | SS |
| 9 | Handle Sleeve | PVC | PVC |
| 10 | Bolt | SS 304 | SS 304 |
| 11 | Body | SS 316 | SS 304 |
| 12 | Spring Washer | SS 304 | SS 304 |
| 13 | Stem | SS316 | SS 304 |
| 14 | Handle Latch | SS304 | SS 304 |
| 15 | Ball | SS316 | SS 304 |
* N: Thread ends according ANSI B 2.1 NPT
* B: Thread ends according BS21 BSP
| SIZE | D | L | H | W |
| 1/4 | 12.7 | 60.7 | 41.5 | 93 |
| 1/2 | 19 | 64.5 | 46.5 | 102 |
| 3/4 | 25.4 | 75 | 54.5 | 114 |
| 1 | 29 | 90 | 60.5 | 124.5 |
| 11/4 | 38 | 96.5 | 77.5 | 144.5 |
| 11/2 | 45 | 111.5 | 79.5 | 164 |
| 2 | 50.8 | 136 | 88.5 | 173 |
| 2 | 63.5 | 136 | 88.5 | 173 |
| 21/2 | 76.2 | 166.5 | 117 | 232 |
| 3 | 88.9 | 199 | 125 | 247 |
| 4 | 101.6 | 260 | 158 | 328 |
| 4 | 101.6 | 260 | 158 | 328 |
| 5 | 125 | / | / | / |
| 5 | 135 | / | / | / |
Quality Inspection
1. Raw Material Verification
Chemical composition and mechanical property testing are performed on stainless steel raw materials to ensure standard-compliant corrosion resistance and pressure-bearing capacity.
2. Weld End Dimensional Inspection
Strict inspection of weld end wall thickness, bevel dimensions, coaxiality and overall tolerances to guarantee precise and reliable welding matching with on-site pipelines.
3. Hydrostatic & Sealing Test
Each valve undergoes shell hydrostatic test and seat sealing test under rated pressure to verify pressure resistance and zero-leakage performance, eliminating potential hidden risks.
4. Finished Product Final Inspection
Full inspection of appearance, cleanliness and assembly integrity before packaging to ensure defect-free delivery of every valve.
Packaging
All 3PC Butt-welded Ends Stainless Steel Ball Valves adopt standardized export double-layer packaging for safe long-distance international transportation. Each valve is individually packed in a thickened corrugated carton with shockproof padding to avoid scratches and collision damage. The outer shipping package uses sturdy plywood cases with excellent compression, drop and moisture resistance, fully adapting to sea and land freight for intact global delivery.
