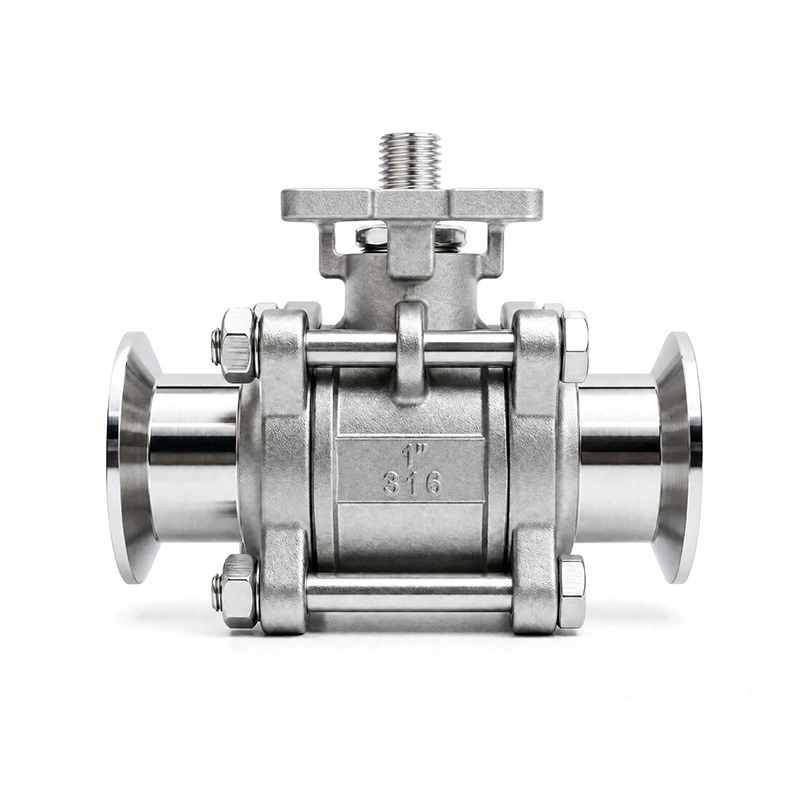

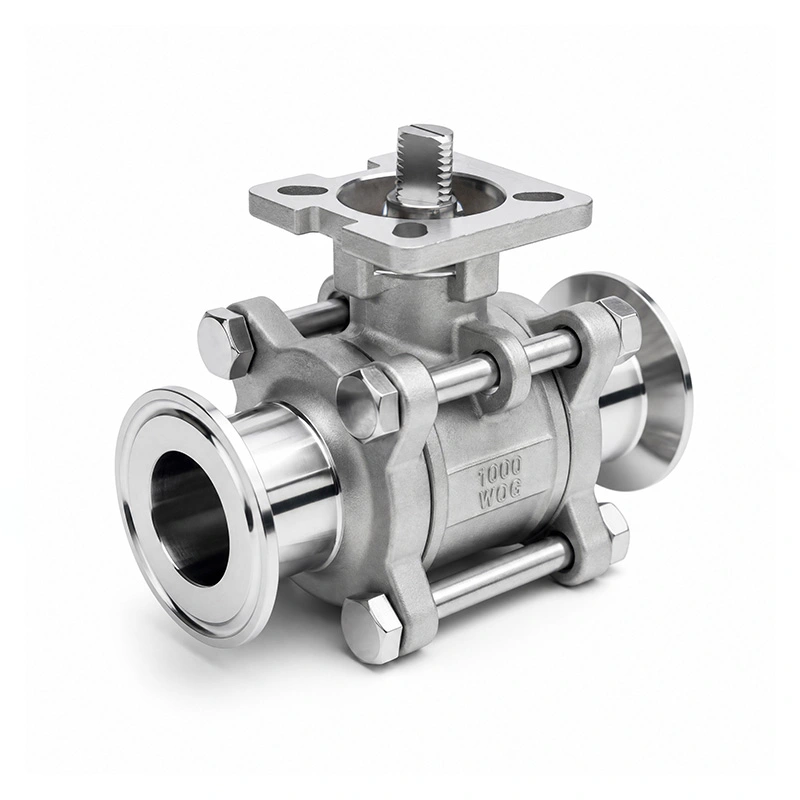

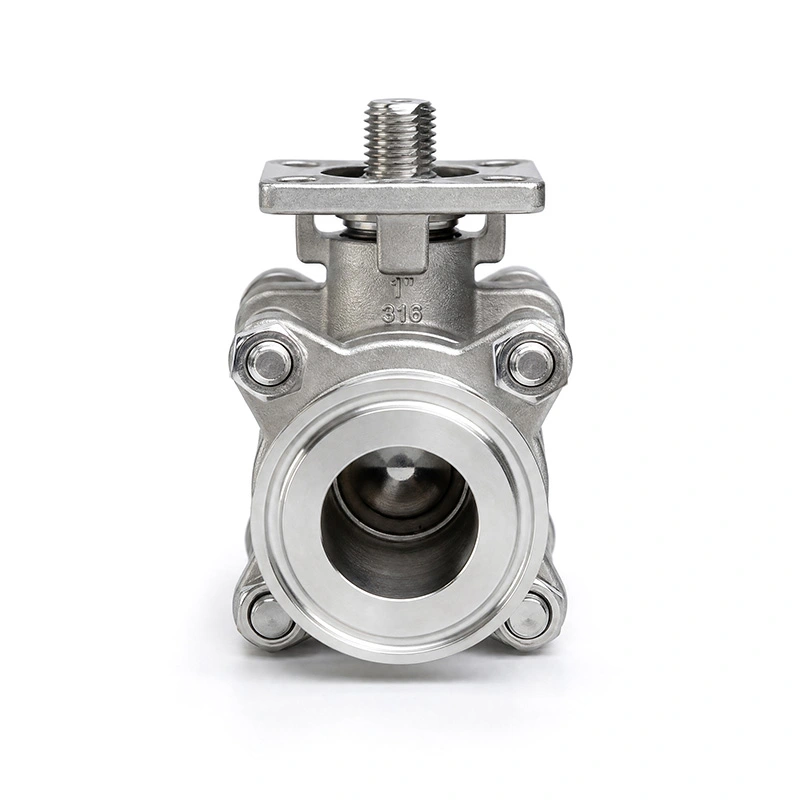

3PC Fully Encapsulated Tri-clamp Ball Valve with ISO 5211 Mounting Pad

The 3PC Fully Encapsulated Tri-clamp Ball Valve with ISO 5211 Mounting Pad uses a three-piece valve body with Tri-clamp connections for sanitary and process piping systems. The three-piece construction provides access to internal components after the pipeline is isolated, while the ISO 5211 mounting pad provides a standardized interface for pneumatic or electric actuator installation. This configuration is suitable for fluid control systems where sanitary connections and automated valve operation are required.

Main Dimensions

Key Design Features

Three-Piece Valve Construction

The three-piece body consists of a central valve section and two end sections. After the pipeline is properly isolated and the valve is depressurized, the body can be opened to inspect or replace internal components. This structure is useful for applications where periodic maintenance of seats, seals or other internal parts is required.

Tri-clamp Connection

Tri-clamp connections use a clamp and gasket arrangement instead of threaded or flanged joints. This connection method allows the valve to be installed or removed without welding the valve directly into the pipeline. The applicable gasket material and connection dimensions should be selected according to the process medium, temperature and piping specification.

ISO 5211 Actuator Mounting

The 3PC Fully Encapsulated Tri-clamp Ball Valve with ISO 5211 Mounting Pad is designed with an ISO 5211 actuator mounting interface on the valve. This allows compatible pneumatic or electric actuators to be mounted directly to the valve without relying on a separate conventional mounting arrangement. Actuator selection should be matched to the valve size, operating torque and system control requirements.

316 Stainless Steel Wetted Components

The body is specified as ASTM A351 CF8M (316), while the ball and stem are specified as ASTM A182 F316. These stainless steel materials are suitable for a range of industrial fluid applications where material compatibility and corrosion resistance are important considerations. The RPTFE seat combines PTFE with 15% filler and should be evaluated against the actual medium and operating temperature before selection.

Applications

The 3PC Fully Encapsulated Tri-clamp Ball Valve with ISO 5211 Mounting Pad can be used in piping systems that require a compact shut-off valve, sanitary-style connections and optional automated actuation. Typical application areas include:

General Liquid Processing

Chemical Fluid Handling

Water Treatment Facilities

Light Industrial Manufacturing

Automated Piping Systems

Installation and Operation

Tri-clamp Installation

Before installation, confirm that the valve size, connection dimensions, gasket material and pressure-temperature requirements match the pipeline specification. Position the valve between the mating Tri-clamp connections, install the appropriate gasket and secure the joint with the clamp. The connection should be checked for correct alignment before the system is pressurized.

Actuator Installation

The ISO 5211 mounting pad provides the interface for compatible pneumatic or electric actuators. Check the actuator mounting pattern, shaft dimensions and required operating torque before installation. The actuator should be installed and adjusted according to the valve and actuator manufacturer's instructions.

Maintenance

Before maintenance, isolate the valve from the pipeline and release all residual pressure. The three-piece construction allows the valve body to be opened for inspection of the ball, seats, stem and sealing components. Replace worn components with suitable parts and check the valve's sealing and operating condition before returning it to service.

Selection Considerations

When selecting this valve for a new piping system, consider the operating medium, pressure, temperature, pipe size, connection dimensions and required actuation method. The valve seat and sealing materials should be checked for compatibility with the process fluid. For automated applications, the actuator should be selected according to the valve operating torque and the control requirements of the system.

FAQ

Q1: What is a 3PC Fully Encapsulated Tri-clamp Ball Valve with ISO 5211 Mounting Pad used for?

A 3PC Fully Encapsulated Tri-clamp Ball Valve with ISO 5211 Mounting Pad is used for on/off fluid control in piping systems where a three-piece valve body, Tri-clamp connection and actuator mounting interface are required. It can be configured for manual operation or combined with a suitable pneumatic or electric actuator for automated control.

Q2: What does the ISO 5211 mounting pad provide?

The ISO 5211 mounting pad provides a standardized actuator mounting interface. Compatible pneumatic or electric actuators can be mounted according to the applicable ISO 5211 mounting dimensions, subject to actuator size and valve torque requirements.

Q3: What are the advantages of the three-piece construction?

The three-piece construction provides access to the valve's internal components after the pipeline has been isolated and depressurized. This can simplify inspection and replacement of seats, seals and other serviceable components compared with a fully enclosed one-piece body.

Q4: What materials are used for this valve?

The body is ASTM A351 CF8M (316), while the ball and stem are ASTM A182 F316. The seat is RPTFE (PTFE+15%fv). Other material configurations are available upon request.

Q5: Can this valve be used with pneumatic or electric actuators?

Yes. The ISO 5211 mounting interface is designed for actuator installation. The appropriate actuator should be selected according to the valve size, operating torque, pressure, temperature and control system requirements.

Q6: What should be checked before ordering?

Confirm the required valve size, connection dimensions, operating pressure, temperature, process medium, seat material and actuation method. For automated systems, the actuator mounting pattern and required torque should also be confirmed.
