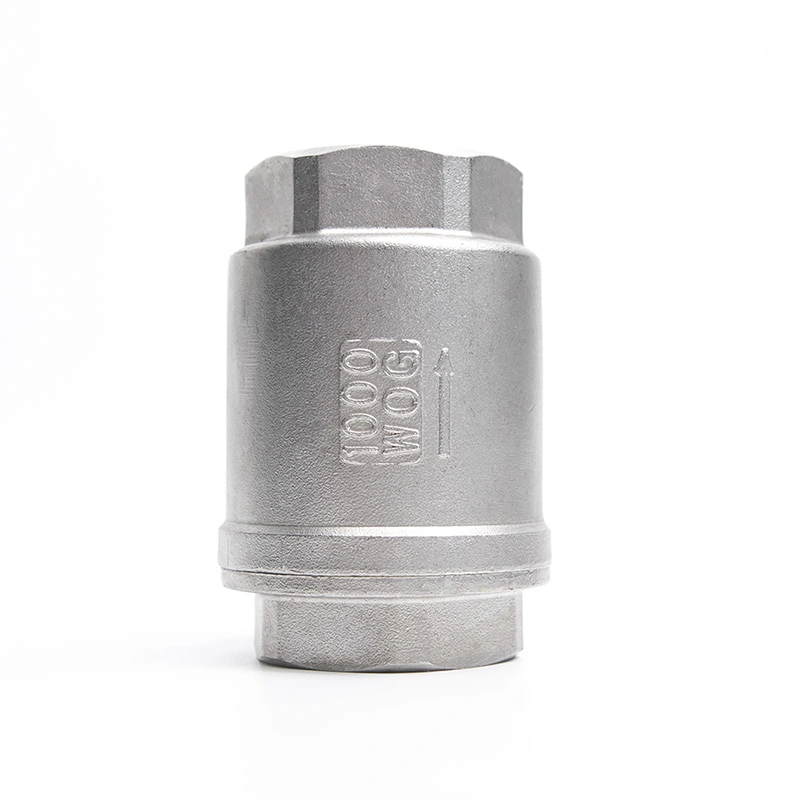

Stainless Steel Spring Vertical Check Valve

A Stainless Steel Spring Vertical Check Valve is a one-way valve used to allow fluid flow in one direction and prevent reverse flow in vertical pipelines. It uses a spring-loaded disc or valve element that opens under sufficient inlet pressure and closes when the flow stops or the pressure reverses.

The valve body is made of stainless steel, such as 304 or 316, for use with compatible water, oil, gas, chemical and other industrial media. Its compact inline design is suitable for piping systems where vertical installation is required.

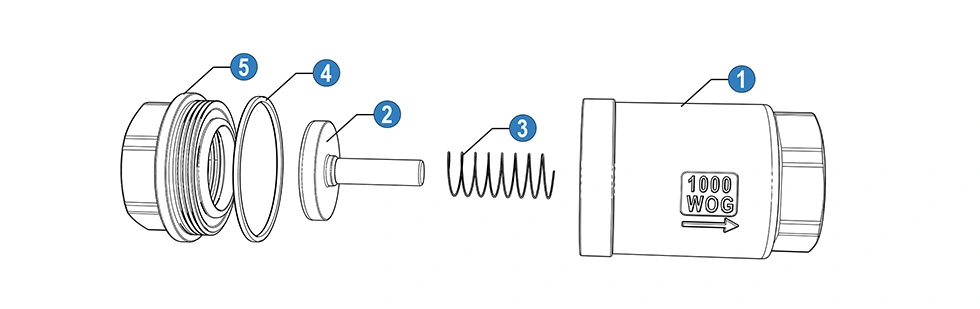

Operating Mechanism: Fluid pressure pushes the internal disc open during forward flow. When the flow decreases or stops, the spring returns the disc to the closed position to limit reverse flow and reduce pressure fluctuations.

Material: Stainless steel construction provides corrosion resistance for applications involving compatible fluids and operating conditions.

Applications: The valve can be used in water supply systems, chemical processing lines, and hygienic or industrial piping where automatic backflow prevention is required.

Our Advantages

Partnering with Shangtai means sourcing directly from an experienced Wenzhou-based manufacturer, providing you with a distinct market edge:

Cost-Effective Expertise: With over 10 years of dedicated valve production, we cut out the middleman to offer unmatched factory-direct pricing.

Certified Reliability: Our facility and manufacturing processes are strictly certified under ISO9001 and CE standards.

Logistical Efficiency: Located just 10 minutes from Wenzhou Airport, we facilitate rapid shipping and welcome convenient factory audits.

Triple-Layer Packaging: To guarantee zero damage during global transit, we utilize a thickened paper inner box, a heavy-duty corrugated middle carton, and a sturdy plywood outer case.

On-Demand Expert Support: Our independent site is staffed by customer service engineers with deep technical backgrounds, ensuring your inquiries are answered immediately.

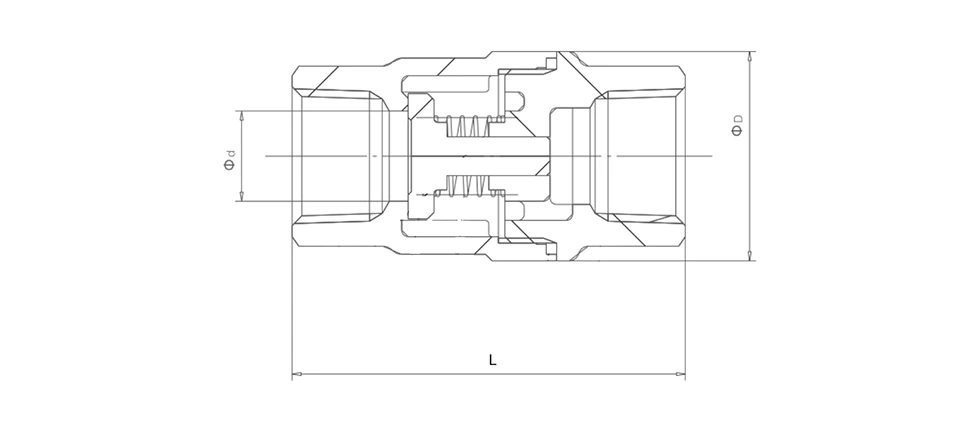

Main Dimensions

Quality Control Process

Every check valve must pass our uncompromising four-stage inspection protocol before leaving the Shangtai factory:

IQC (Incoming Quality Control): Inspecting the appearance and material of the raw blanks, alongside conducting fatigue tests on the internal springs.

IPQC (In-Process Quality Control): Continuously monitoring the machining and assembly stages to ensure strict compliance with dimensional tolerances.

FQC (Final Quality Control): Performing rigorous hydrostatic and pneumatic back-pressure testing to guarantee absolute zero-leakage sealing performance.

OQC (Outgoing Quality Control): Conducting a final inspection prior to shipment to verify that product specifications match order requirements and that the packaging is fully intact.

FAQ

Q: Where can I find the specific dimensions, pressure ratings, and flow parameters?

A: The product parameter table on this page provides the main dimensions, pressure ratings, connection specifications, and other technical data. For custom sizes, cracking pressure requirements, or additional technical information, please contact our technical team.

Q: Is this valve effective against water hammer?

A: The spring-loaded closing mechanism helps the valve close when the forward flow decreases or reverses, which can reduce reverse flow and associated pressure fluctuations. The actual effect on water hammer depends on the pipeline layout, flow velocity, valve size, and operating conditions.

Q: Can this vertical check valve be installed horizontally?

A: The Stainless Steel Spring Vertical Check Valve is designed for vertical installation, with the spring-loaded internal element operating according to the specified flow direction. Horizontal installation should be confirmed with the valve manufacturer based on the specific model and piping arrangement.
