Flange Ball Valves

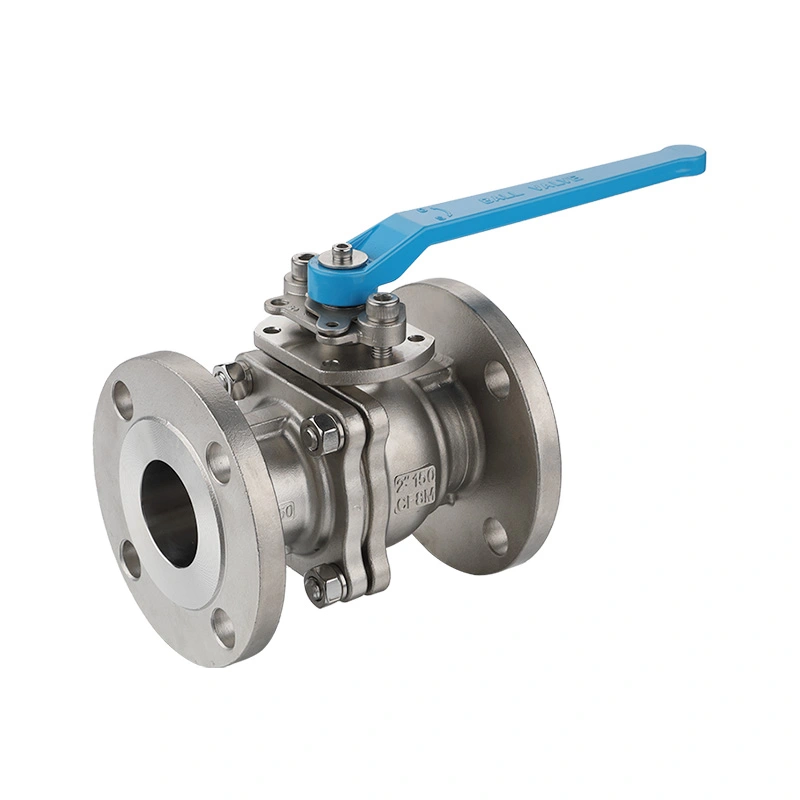

ANSI 150LB Stainless Steel Flanged Ball Valve
Shangtai ANSI 150LB Stainless Steel Flanged Ball Valve is strictly designed and manufactured per ANSI B16.34 and API 608 standards. Featured with an anti-blowout stem and professional anti-static structure, it effectively prevents stem ejection under overpressure and eliminates static spark risks.
An ANSI 150LB Stainless Steel Flanged Ball Valve is a stainless steel ball valve with flanged end connections, designed for piping systems using the ASME Class 150 pressure class. It uses a quarter-turn rotating ball to start or stop the flow of compatible fluids and is commonly used for on/off isolation in industrial piping systems.
ANSI 150LB refers to the ASME Class 150 pressure class. The actual allowable working pressure depends on the valve size, material, operating temperature and applicable pressure-temperature rating. Stainless steel construction provides a corrosion-resistant valve body and can be specified with materials such as 304 or 316 stainless steel according to the application.
The flanged connection allows the valve to be bolted directly to matching pipeline flanges, providing a practical connection method for industrial piping systems and facilitating future inspection or maintenance. The ball valve mechanism provides quick quarter-turn operation for opening and closing the pipeline.
Main Dimensions
| Size | 1/2inch - 8inch |
| Pressure Class | CL150 |
| End Connections | Flange |
| Max Pressure | 285PSI |
| Design and manufacturing standards | ASME B16.34 |
| Testing and inspection | API598 |
| Flange dimensions and bolt hole details | ASME B16.50 |
| Pressure-Temperature Ratings | ASME B16.34 |
| Connection Ends | RF Flanged |
| Temperature Range | -25℃~150℃ |
| Body material | ASTM A351 CF8M（316） |
| Ball Material | ASTM A182 F316 |
| Stem Material | ASTM A182 F316 |
| Seat Material | RPTFE(PTFE+15%fv) |
| Options | Other materials are available upon request. |

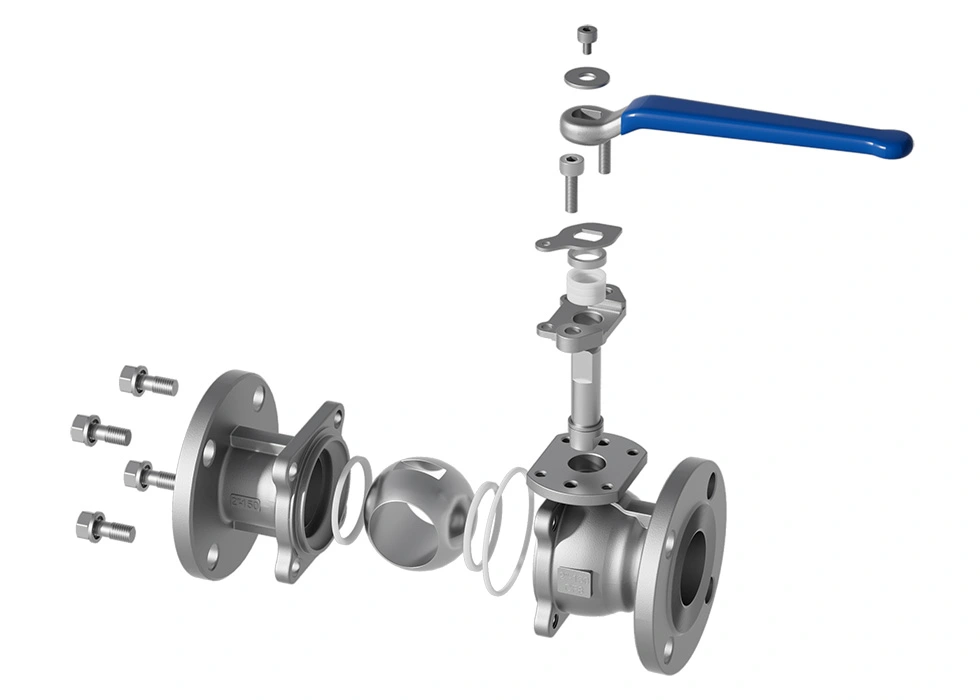

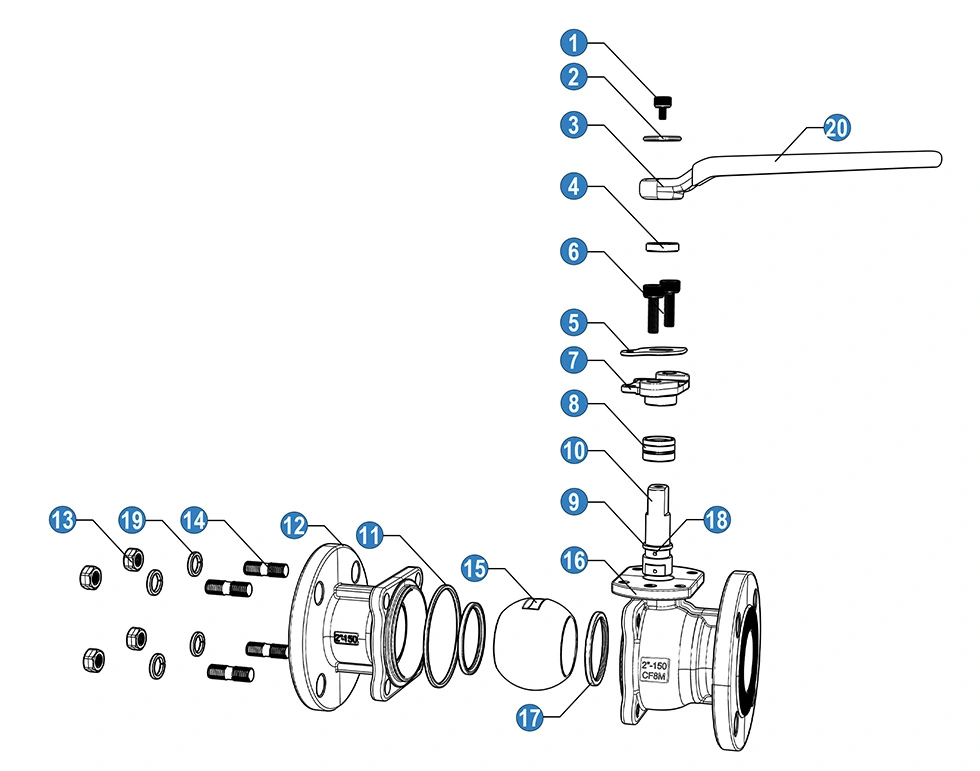

| No | Name | Material |
| 1 | Bolt | SS 304 |
| 2 | Washer | SS 304 |
| 3 | Handle | Cast Aluminium |
| 4 | retaining ring | SS |
| 5 | orientation patch | SS 304 |
| 6 | Bolt | SS 304 |
| 7 | Gland | SS 304 |
| 8 | Stem packing | PTFE |
| 9 | Friction ring | PTFE |
| 10 | Stem | SS 304 |
| 11 | Gasket | PTFE |
| 12 | Cap | SS 304(CF8) |
| 13 | Nut | SS 304 |
| 14 | Stud Bolt | SS 304 |
| 15 | Ball | SS 304 |
| 16 | Body | SS 304(CF8) |
| 17 | Ball seat | RPTFE |
| 18 | Antistatic device . | SS 304 |
| 19 | Spring Washer | SS 304 |
| 20 | Handle Sleeve | PVC |

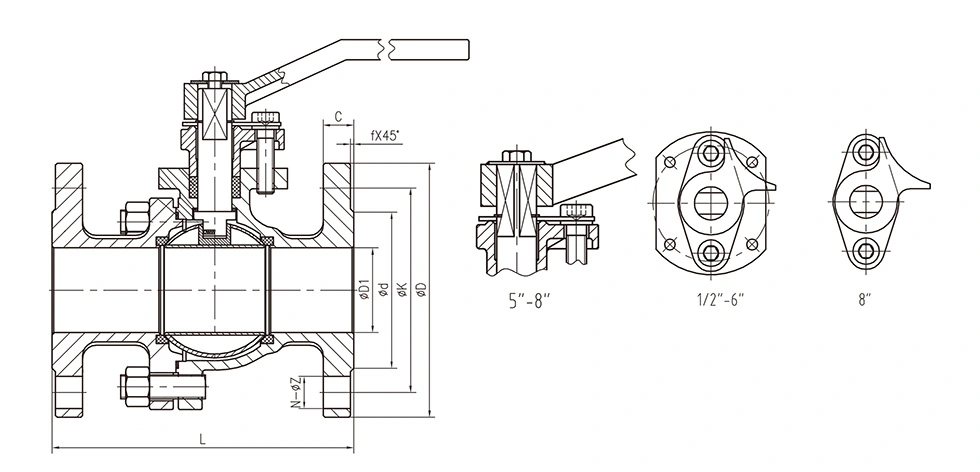

General Dimensions:
| NO | Size | D1 | d | K | D | C | f | N-ΦZ |
| S063-04 | 1/2" | 15 | 34.9 | 60.3 | 90 | 10 | 2 | 4-16 |
| S063-05 | 3/4" | 20 | 42.9 | 69.9 | 100 | 10.9 | 2 | 4-16 |
| S063-06 | 1" | 25 | 50.8 | 79.4 | 110 | 11.6 | 2 | 4-16 |
| S063-07 | 11/4" | 32 | 63.5 | 88.9 | 115 | 13.2 | 2 | 4-16 |
| S063-08 | 11/2" | 38 | 73 | 98.4 | 125 | 14.7 | 2 | 4-16 |
| S063-09 | 2" | 50 | 92.1 | 120.7 | 150 | 16.3 | 2 | 4-19 |
| S063-10 | 21/2" | 65 | 104.8 | 139.7 | 180 | 17.9 | 2 | 4-19 |
| S063-11 | 3" | 80 | 127 | 152.4 | 190 | 19.5 | 2 | 4-19 |
| S063-12 | 4" | 100 | 157.2 | 190.5 | 230 | 24.3 | 2 | 8-19 |
| S063-13 | 5" | 125 | 185.7 | 215.9 | 255 | 24.3 | 2 | 8-22 |
| S063-14 | 6" | 150 | 215.9 | 241.3 | 280 | 25.9 | 2 | 8-22 |
| S063-15 | 8" | 200 | 269.9 | 298.5 | 345 | 29 | 2 | 8-22 |

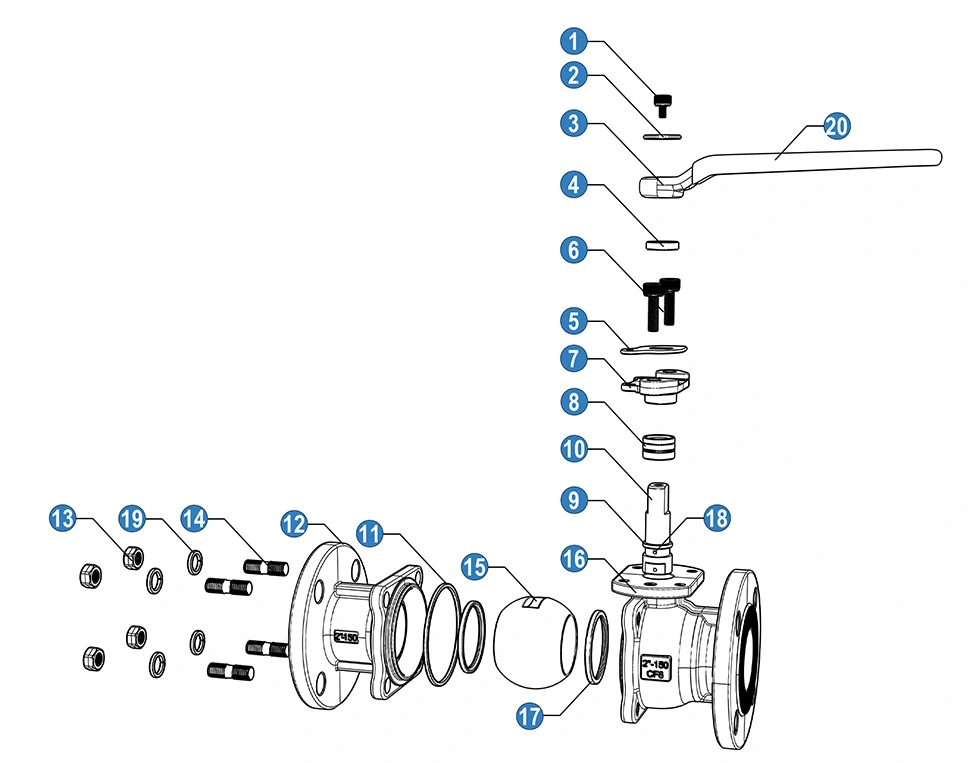

| No | Name | Material |
| 1 | Bolt | SS 304 |
| 2 | Washer | SS 304 |
| 3 | Handle | Cast Aluminium |
| 4 | retaining ring | SS |
| 5 | orientation patch | SS 304 |
| 6 | Bolt | SS 304 |
| 7 | Gland | SS 304 |
| 8 | Stem packing | PTFE |
| 9 | Friction ring | PTFE |
| 10 | Stem | SS 304 |
| 11 | Gasket | PTFE |
| 12 | Cap | SS 316 (CF8M) |
| 13 | Nut | SS 304 |
| 14 | Stud Bolt | SS 304 |
| 15 | Ball | SS 316 |
| 16 | Body | SS 316(CF8M) |
| 17 | Ball seat | RPTFE |
| 18 | Antistatic device . | SS 316 |
| 19 | Spring Washer | SS 304 |
| 20 | Handle Sleeve | PVC |
Industry Applications
Our ANSI 150LB Stainless Steel Flanged Ball Valve adopts a uniquethree-stage stem sealing system, optimized for high-cycle operation, pressure fluctuation and gaseous medium working conditions. It delivers zero-leakage stability and outstanding anti-fatigue performance for diverse industrial fluid systems:
Petroleum & Chemical Industry
Suitable for process pipelines, branch lines and light fuel gas transmission. The multi-stage stem seal reliably prevents leakage of flammable and explosive media under fluctuating pressure.
Specialty Gas Systems
Ideal for high-pressure loops of nitrogen, oxygen, hydrogen and compressed air, widely used in laser cutting gas supply, gas station and frequent start-stop gas pipelines.
Power & Thermal Engineering
Applicable to plant utility pipelines and auxiliary fluid lines. It resists seal aging caused by alternating temperature and pressure, ensuring long-term stable operation.
Pharmaceutical & Fine Chemical Industry
Provides tight isolation for corrosive and pure process fluids. The bidirectional sealing design avoids medium leakage and external contamination, meeting high safety and sanitary standards.
General Industrial & Hydraulic Systems
Perfect for pressure test benches and automated fluid equipment. Excellent anti-fatigue performance adapts to frequent switching and pulse pressure working scenarios.
Why Choose Shangtai?
Exclusive 3-Stage Stem Sealing System
Equipped with pyramidal self-tightening primary seal, Viton O-ring secondary seal and Belleville spring-loaded V-ring tertiary seal. Its self-enhancing sealing performance compensates for wear and thermal deformation, eliminating stem leakage during long-term high-cycle operation.
Dual-Directional Protection Structure
The upgraded sealing system prevents internal medium leakage and blocks external dust, moisture and impurities from entering the valve, effectively extending service life and lowering maintenance costs.
Standardized American Standard Production
Manufactured and tested per API 608 / ISO 17292, ASME B16.34 and API 598. Compliant with ASME B16.5 (flange) and ASME B16.10 (face-to-face) standards, ensuring full compatibility with global industrial projects.
Anti-Fatigue & Safe Structure
Reinforced valve body withstands pulse pressure and severe pressure shocks without deformation. Built-in anti-blowout stem structure eliminates overpressure safety hazards.
Static-Conductive Anti-Static Design
Comes with a professional anti-static structure that continuously conducts static electricity generated by friction between the medium and internal parts. It avoids static accumulation and spark risks, ensuring safe operation for flammable, explosive and gaseous medium pipelines, complying with industrial safety specifications.
Low Maintenance & Cost-Effective
Optimized for frequent switching scenarios with superior anti-fatigue performance. It reduces equipment downtime and replacement frequency, cutting long-term operating costs compared with ordinary single-seal valves.
Exclusive Service Support
Support laser customized logo and packaging design
Provide OEM/ODM services
Fully inspected before leaving the factory, with quality inspection report attached
Optional additional services such as Collision protection and sea freight reinforced packaging
FAQ
1. What does ANSI 150LB mean for a stainless steel flanged ball valve?
ANSI 150LB refers to the ASME Class 150 pressure class used for the valve and its flanged connection. The actual allowable working pressure depends on the valve size, material, operating temperature and applicable pressure-temperature rating.
2. What flange standards are available for this ball valve?
Flange standards can be selected according to the pipeline system and project requirements. Common configurations may include ASME B16.5 flanges, while other flange standards can be considered for specific applications.
3. What stainless steel materials can be used for the valve?
Common body materials include 304 and 316 stainless steel, with the specific grade selected according to the working medium, temperature, pressure and corrosion conditions. Other material combinations may be available upon request.
4. What media can an ANSI 150LB Stainless Steel Flanged Ball Valve handle?
The valve can be used for water, oil, gas and other compatible industrial fluids. The valve body, ball, seat and sealing materials should be selected according to the chemical compatibility, pressure and temperature of the actual medium.
5. Is this flanged ball valve suitable for high-temperature service?
The applicable temperature range depends on the valve materials, seat material and pressure-temperature rating. The actual operating temperature should be confirmed when selecting the valve to ensure that the configuration is suitable for the intended service conditions.
6. Can the valve be supplied with a pneumatic or electric actuator?
Yes. The flanged ball valve can be configured for manual, pneumatic or electric operation according to the valve size, required operating torque and control system. The actuator should be properly matched to the valve and actual operating conditions.
7. What information is needed to select the correct flanged ball valve?
Key selection information includes nominal valve size, pressure class, flange standard, working medium, operating pressure, temperature, required material and operating method. Pipeline drawings or application details can also help determine the appropriate configuration.
8. Can the stainless steel flanged ball valve be customized?
Yes. Material grades, flange specifications, seat and sealing materials, valve operation and other configuration details can be selected according to project requirements. Drawings or technical specifications can be reviewed before production.
