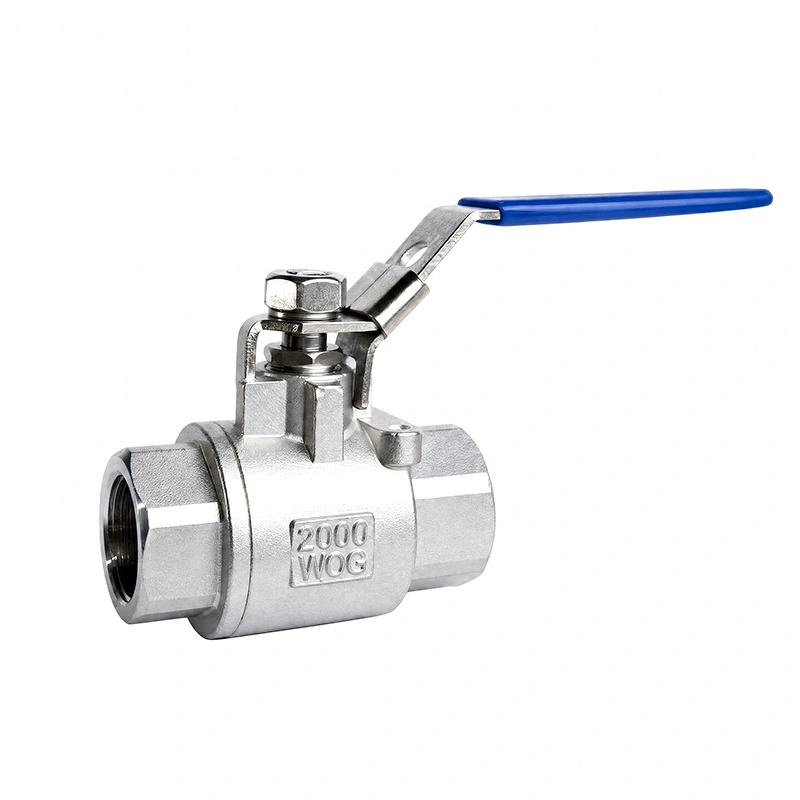

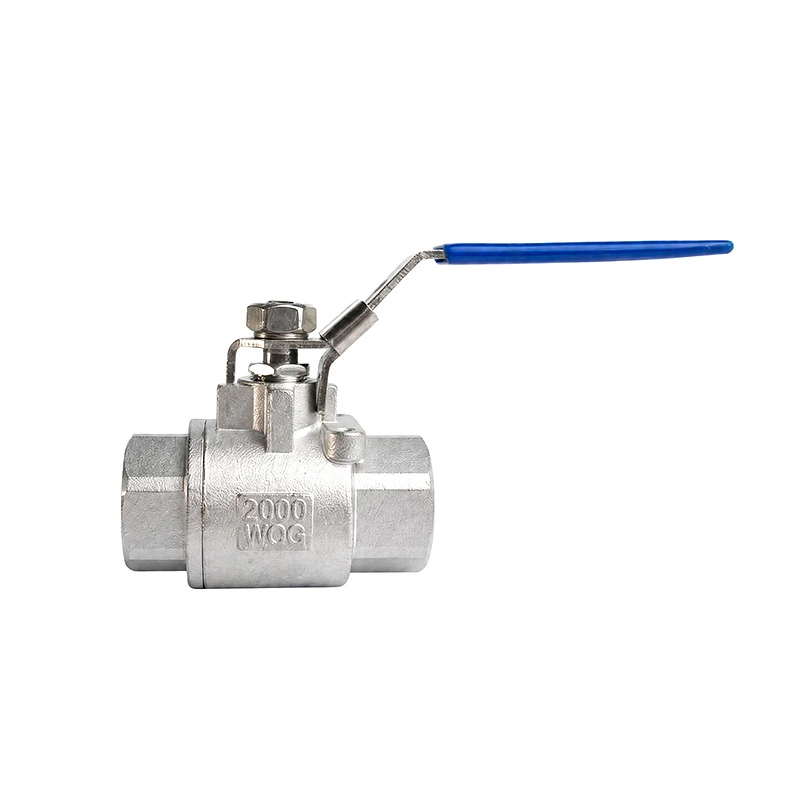

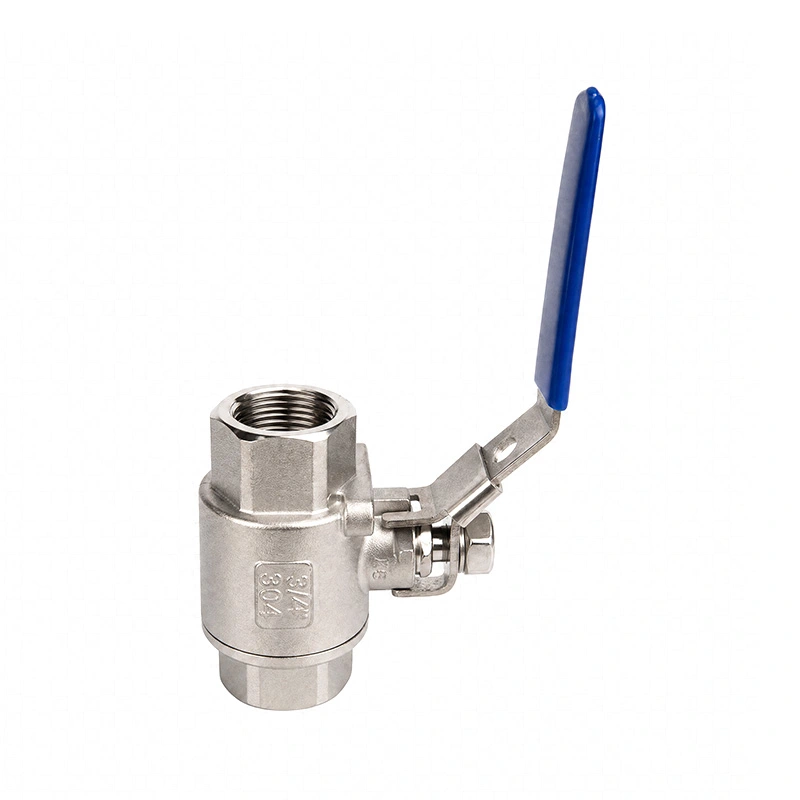

2PC Ball Valve 2000WOG with Locking Device

The Shangtai 2PC Ball Valve 2000WOG with Locking Device is designed for shut-off applications where higher pressure capacity and controlled handle operation are required. The two-piece valve body, locking handle and threaded connection make it suitable for a range of industrial fluid control systems.

The valve is commonly used with water, oil, gas, compressed air and other compatible fluids under suitable non-shock service conditions. Its 2000WOG rating provides a higher pressure range than standard low-pressure ball valves, while the locking device helps keep the handle in the selected open or closed position.

Compared with some forged ball valve designs, this model provides an alternative for applications where the specified pressure, temperature, materials and connection requirements are within the valve's rated conditions. For applications around 1200 PSI, the valve can be considered based on the actual working conditions and required safety margin.

Shangtai Valve manufactures this ball valve and manages the production and inspection process at the factory. The valve is manufactured according to ISO 17292 and API 608 requirements, with testing and inspection based on API 598. CE and ISO 9001 certificates are available.

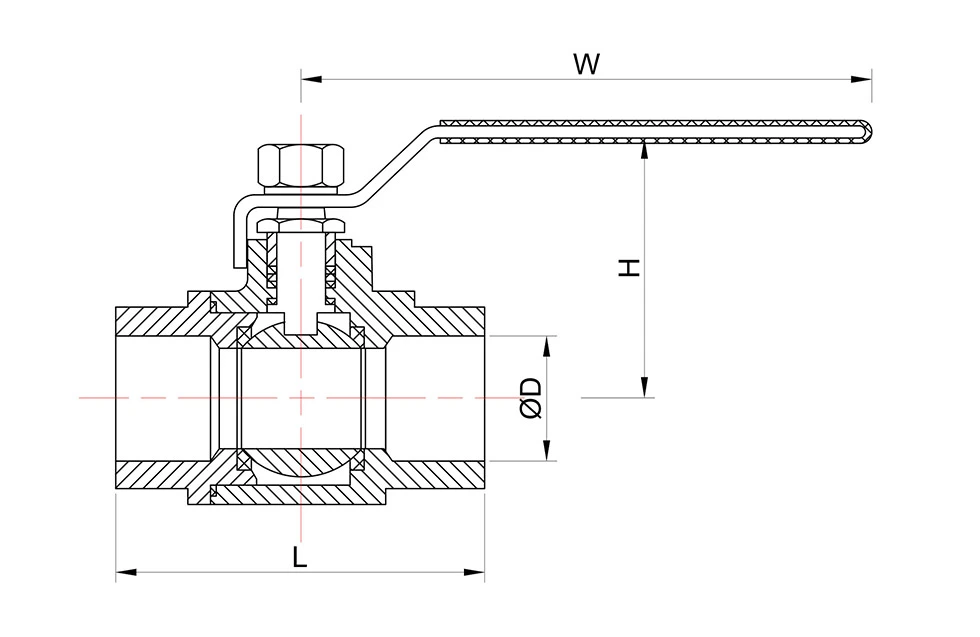

Main Dimensions

* N: Thread ends according ANSl B 2.1 NPT
* B: Thread ends according BS21 BSP

Applications

This ball valve is used in industrial fluid control systems and equipment where threaded shut-off service is required. Typical applications include:

Water treatment systems

Oil and gas pipelines

Chemical processing

Compressed air systems

Industrial equipment

HVAC systems

Marine applications

General fluid control systems

Skid-mounted equipment

Machinery and plant maintenance

The valve can be used with water, oil, gas and other compatible fluids within the specified pressure and temperature range. For corrosive media, special fluids or conditions outside the listed ratings, the material and valve configuration should be confirmed before selection.

Key Features

2000WOG Pressure Rating

The 2000WOG rating provides a higher pressure capability than standard low-pressure ball valves. The actual allowable working pressure depends on valve size, temperature, medium and applicable pressure-temperature ratings.

Locking Handle

The locking device allows the handle to be secured in the selected position, helping reduce unintended valve operation during use and maintenance.

Two-Piece Valve Body

The two-piece body construction provides a practical configuration for threaded industrial piping systems and shut-off applications.

Stainless Steel Construction

The listed configuration uses ASTM A351 CF8M (316) for the body, ASTM A182 F316 for the ball and stem, and RPTFE for the seat. Other material options are available upon request.

Threaded Connections

NPT and BSP thread standards are available. The appropriate connection should be selected according to the existing piping system and installation requirements.

Manufacturing and Testing Standards

The valve is designed and manufactured according to ISO 17292 and API 608 requirements, with inspection and testing based on API 598. Pressure-temperature ratings are referenced to ASME B16.34.

Factory Manufacturing and Inspection

Shangtai Valve manufactures the product and manages production, assembly and inspection at the factory. Inspection includes dimensional, assembly and pressure or leakage checks according to the applicable requirements before shipment.

FAQ

Q1: What does 2000WOG mean for a 2PC Ball Valve 2000WOG with Locking Device?

2000WOG refers to the pressure rating for water, oil and gas service under suitable non-shock conditions. The actual allowable working pressure should be confirmed based on valve size, temperature, medium and the applicable pressure-temperature rating.

Q2: What is the purpose of the locking device?

The locking device helps keep the valve handle in the selected open or closed position and reduces the risk of unintended operation during use or maintenance.

Q3: Can this valve be used instead of a forged ball valve?

It can be considered when the valve's pressure, temperature, material and connection specifications meet the service requirements. For high-pressure, high-temperature or critical applications, the operating conditions should be confirmed before selection.

Q4: What media can this ball valve handle?

It is commonly used with water, oil, gas, compressed air and other compatible industrial fluids. For corrosive or special media, the fluid information should be provided to confirm the suitable materials and valve configuration.

Q5: What standards are used for this valve?

The valve is manufactured according to ISO 17292 and API 608 requirements. Inspection and testing are based on API 598, while pressure-temperature ratings reference ASME B16.34.

Q6: Do you have CE and ISO 9001 certificates?

Yes. CE and ISO 9001 certificates are available. Relevant documentation can be provided according to the product and order requirements.

Q7: Are you the manufacturer?

Yes. Shangtai Valve manufactures the valve and manages the related production, assembly and inspection processes at its factory in Wenzhou, China.
