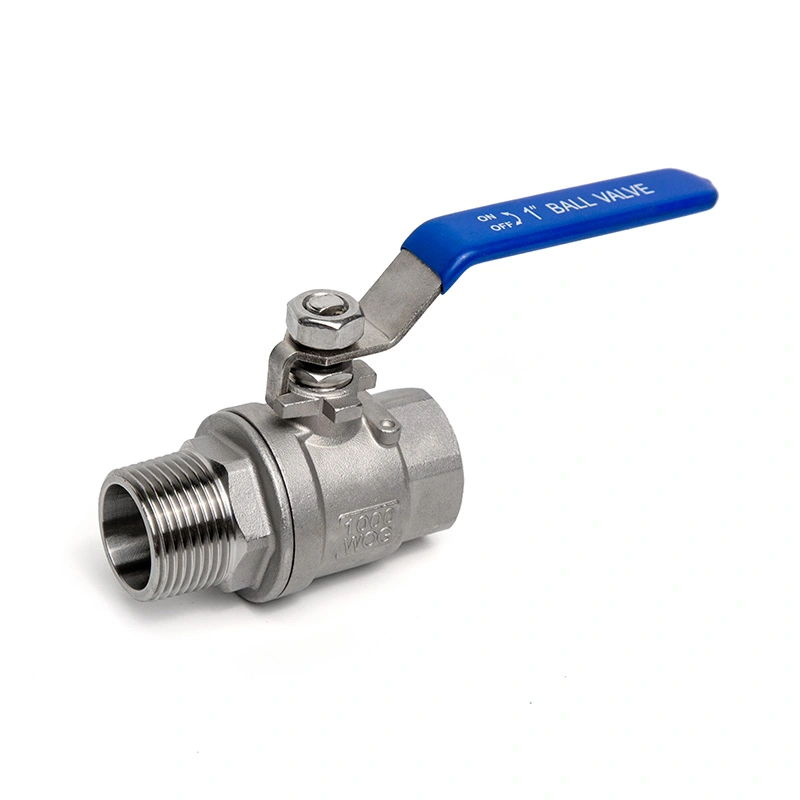

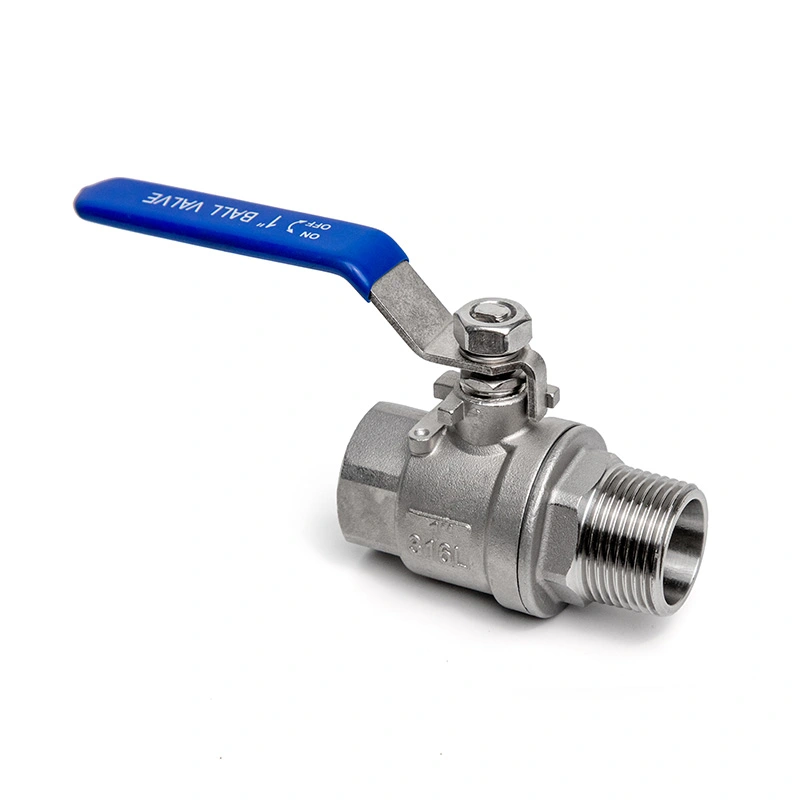

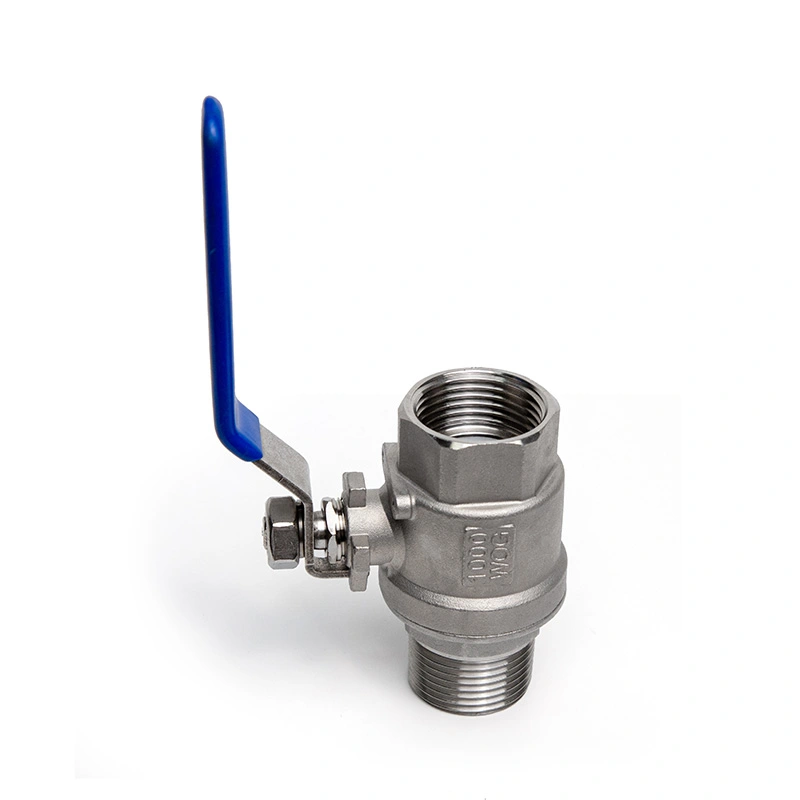

2PC Male to Female Threaded Ball Valve

Shangtai 2PC Male to Female Threaded Ball Valve provides efficient and reliable on/off flow control for diverse piping systems. Designed with versatile male-to-female threading, it allows for easy installation and ensures a secure, leak-proof connection. Built for durability, this valve is highly adaptable to various industrial, commercial, and fluid handling applications.

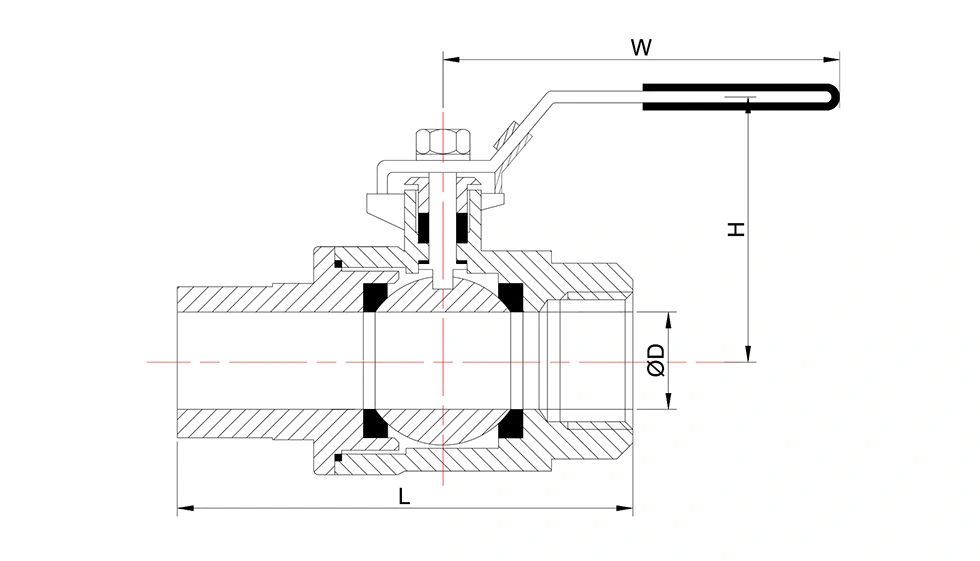

Main Dimensions

· N: Thread ends according ANSl B 2.1 NPT
· B: Thread ends according BS21 BSP

General Dimensions:

Why Choose Us

Direct Source Factory

As the original manufacturer, Shangtai cuts out the middlemen. We provide competitive pricing, direct communication, and dependable delivery times for our global clients.

Customizable Configurations

We understand that different working conditions require specific solutions. We offer selectable components tailored to your exact temperature and pressure requirements, ensuring optimal performance for your project.

Certified Quality Control

Quality is our priority. Manufactured under strict quality management systems, our products proudly hold ISO9001 and CE certifications to guarantee safe and stable operation.

Verified Material Reports

Transparency and reliability are standard at Shangtai. We provide comprehensive material test reports for our valves, guaranteeing the authenticity and durability of the metals used in your pipeline.

Typical Applications

Water Systems: Manual isolation of compatible water lines, equipment connections and utility piping.

Air and Gas Lines: On/off control in compatible compressed-air and gas piping within the specified pressure and temperature limits.

Oil and Process Fluids: Used for compatible oil and industrial fluids where threaded connections are specified.

Industrial Equipment: Suitable for equipment connections and compact piping assemblies using NPT or BSP threads.

Maintenance and Replacement: The male-to-female connection arrangement can be useful when a pipeline includes different threaded connection configurations at the two sides of the valve.

Selection and Installation

Before ordering, confirm the nominal size, NPT or BSP thread type, pressure, temperature, working medium and required material configuration. The male and female thread arrangement should also match the connected pipe or fittings.

Before installation, inspect the threaded ends and remove any contamination from the connection surfaces. Use the specified thread sealing method and avoid excessive tightening force, which may damage the threaded connection or valve body.

After installation, operate the handle through its full quarter-turn range and check the threaded connections for leakage during commissioning. The pipeline should be depressurized before any maintenance or disassembly work.

Quality and Documentation

Shangtai carries out machining, assembly, testing and final inspection for its valve products. Production inspection can cover incoming materials, machining dimensions, assembly condition, pressure testing and finished valve inspection.

ISO 9001 and CE documentation is available for applicable configurations. Material test reports and other inspection documents can be provided when specified in the order.

FAQ

Q1: What is the purpose of a 2PC Male to Female Threaded Ball Valve?

The male-to-female configuration allows the valve to connect directly between different threaded components. It can be useful when one side of the pipeline or fitting has a female thread and the other side requires a male connection.

Q2: Can the valve be supplied with both NPT and BSP threads?

Yes. The listed thread options include NPT and BSP. The required thread standard and size should be confirmed before production because NPT and BSP threads are not interchangeable.

Q3: What materials are used for this valve?

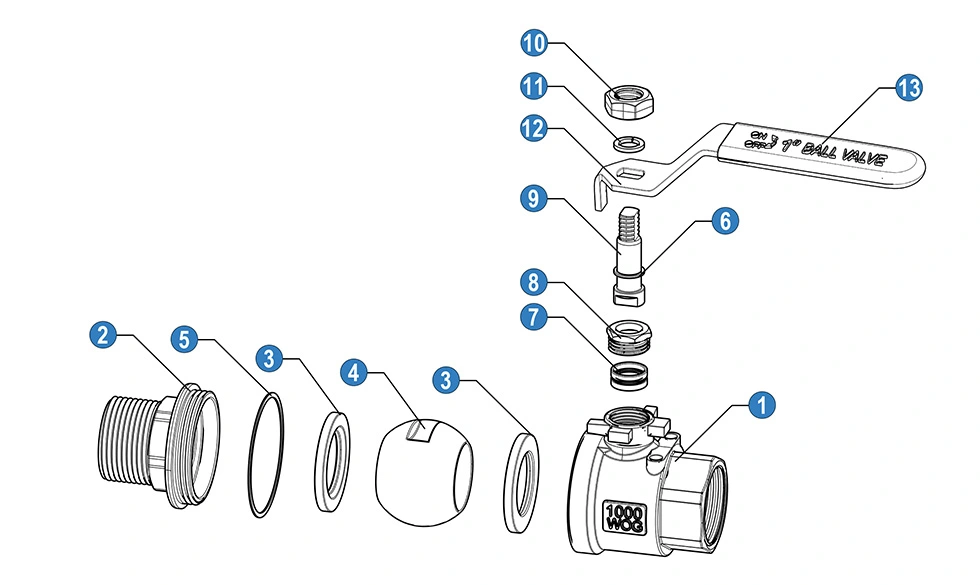

The main configuration uses CF8M stainless steel for the body, F316 for the ball and stem, and RPTFE for the seat. The component table also lists SS 304 and SS 316 options for selected parts.

Q4: What fluids can this threaded ball valve handle?

It can be used with compatible water, air, gas, oil and other industrial fluids within the specified pressure, temperature and material limits. Chemical compatibility should be checked before selecting the valve for a specific medium.

Q5: How should the threaded connection be installed?

Confirm the thread type and size before installation, clean the mating threads, and apply the specified sealing method. Tighten the connection according to the applicable installation procedure without using excessive force on the valve body.

Q6: What information is required for a quotation?

Provide the valve size, NPT or BSP thread type, quantity, working medium, operating pressure, temperature, material requirements and any applicable drawings or project specifications. This information allows the valve configuration to be confirmed before quotation.
