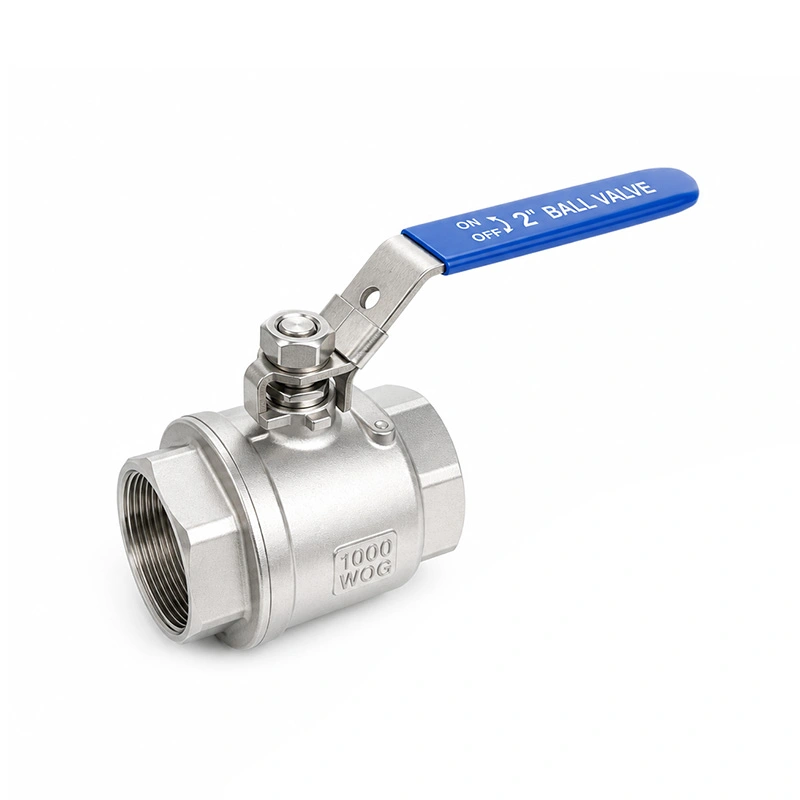

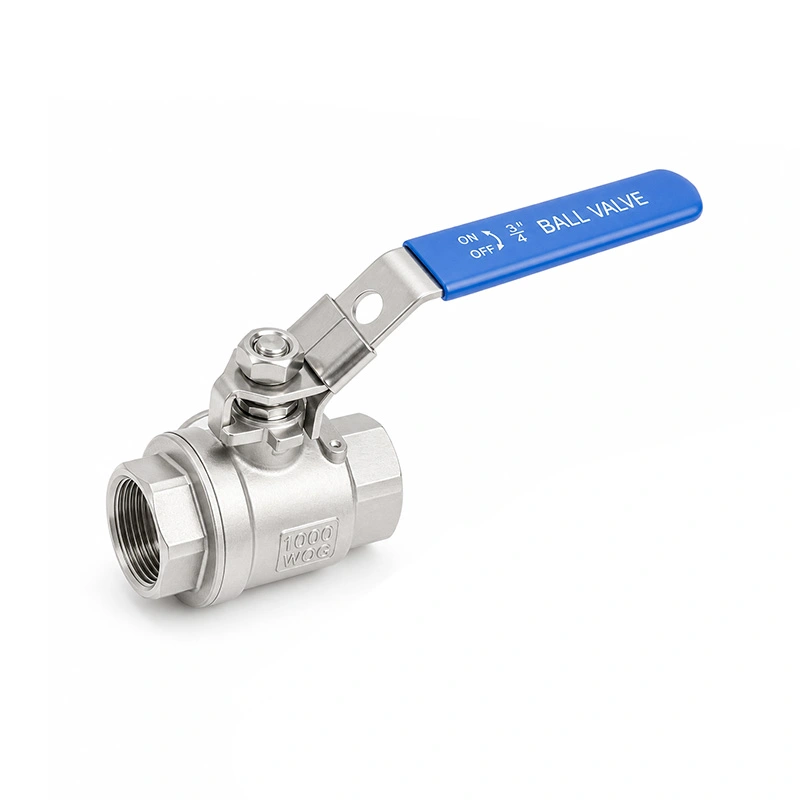

2PC Ball Valve with Locking Device
Shangtai Valve is a ball valve manufacturer in China, focusing on industrial valve design and production. If you are sourcing a 2PC Ball Valve with Locking Device from China, we can provide valve configurations based on your required specifications and application conditions.
To date, Shangtai has worked with more than 300 customers in Europe and America, including over 50 long-term customers. Our customer base covers different types of businesses, from small workshops to industrial plants.
We also support customized valve requirements, including materials, connection types and other product specifications.
To date, Shangtai has worked with more than 300 customers in Europe and America, including over 50 long-term customers. Our customer base covers different types of businesses, from small workshops to industrial plants.
We also support customized valve requirements, including materials, connection types and other product specifications.

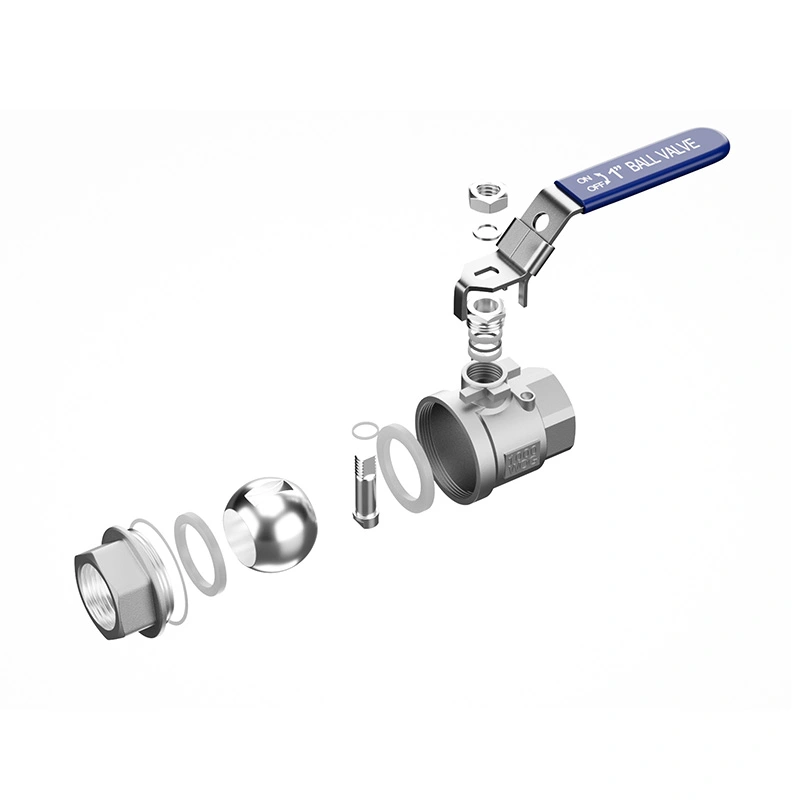

Our 2PC Ball Valve with Locking Device adopts precision thread design for easy installation and maintenance, making it suitable for working conditions with frequent opening and closing and all types of industrial fluid systems. Thanks to the two-piece split structure, internal sealing rings and other spare parts can be replaced individually without swapping the entire valve body, extending service life and cutting your operating costs.
Fitted with an integrated open-close locking device, this valve effectively prevents accidental actuation and subsequent equipment losses under frequent cycling, making it an ideal component for pipeline control. We supply multiple material options including 304 stainless steel, 316 stainless steel and carbon steel, with sizes ranging from 1/4 inch to 6 inches to match your pipeline specifications.
This 2-piece lockable ball valve holds international certifications including ISO9001 and CE to fully meet your stringent quality standards.
Safety is our core design principle, reflected in the anti-blowout stem structure. If you seek premium quality paired with cost competitiveness, this valve is our sincere recommendation.
Main Dimensions
| Size | 1/4inch - 6inch |
| Pressure Class | CL150 |
| Thread Standard | NPT、BSP |
| Max Pressure | 285PSI |
| Design and manufacturing standards | ASME B16.34 |
| Testing and inspection | API598 |
| Special design | Locking device, Anti-blowout stem |
| Temperature Range | -25℃~150℃ |
| Body material | ASTM A351 CF8M（316） |
| Ball Material | ASTM A182 F316 |
| Stem Material | ASTM A182 F316 |
| Seat Material | RPTFE(PTFE+15%fv) |
| Options | Other materials are available upon request. |

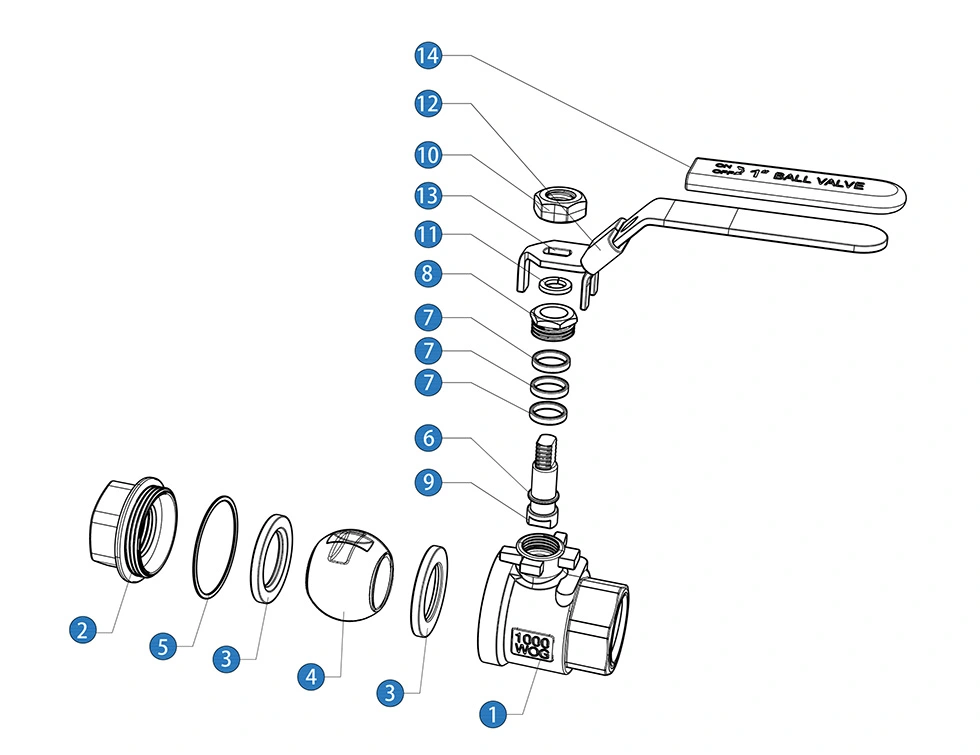

Product Parameters
| No | Name | Material(*N/B) | |
| 1 | Body | SS 316 | SS 304 |
| 2 | Cap | SS 316 | SS 304 |
| 3 | Ball Seat | PTFE | PTFE |
| 4 | Ball | SS 316 | SS 304 |
| 5 | Gasket | PTFE | PTFE |
| 6 | Friction ring | PTFE | PTFE |
| 7 | Stem packing | PTFE | PTFE |
| 8 | Gland | SS 316 | SS 304 |
| 9 | Stem | SS 316 | SS 304 |
| 10 | Nut | SS 304 | SS 304 |
| 11 | Spring Washer | SS 304 | SS 304 |
| 12 | Locking Device | SS 304 | SS 304 |
| 13 | Handle | SS | SS |
| 14 | Handle Sleeve | PVC | PVC |
* N: Thread ends according ANSI B 2.1 NPT
* B: Thread ends according BS21 BSP

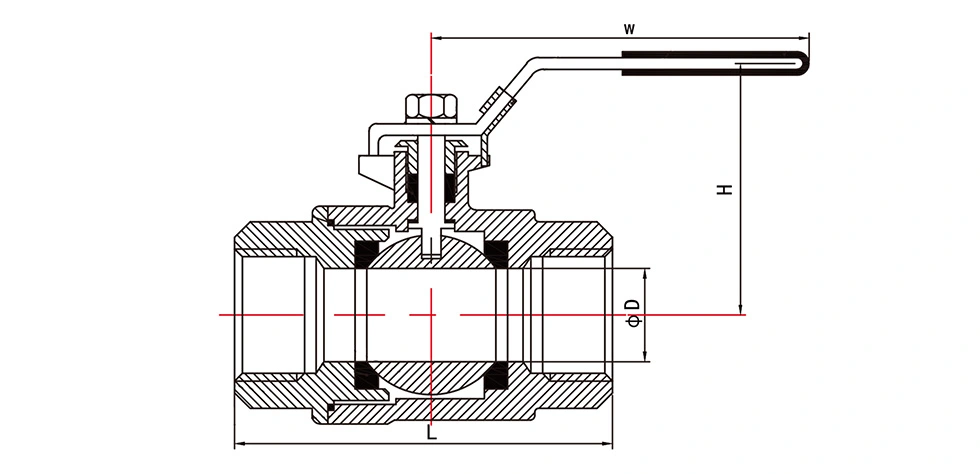

General Dimensions:
| Size | Dimensions (mm) | Weight(g) | |||
| D | W | H | L(+-2) | ||
| 1/4" | 8 | 102 | 54 | 52 | 0.22 |
| 3/8" | 10 | 102 | 54 | 52 | 0.22 |
| 1/2" | 15 | 105 | 57 | 55 | 0.23 |
| 3/4" | 20 | 105 | 60 | 60 | 0.3 |
| 1" | 25 | 110 | 71 | 70 | 0.5 |
| 11/4" | 32 | 126 | 77 | 81 | 0.82 |
| 11/2" | 38 | 155 | 88 | 92 | 1.1 |
| 2" | 49 | 165 | 100 | 106 | 1.5 |
| 21/2" | 63 | 230 | 125 | 150 | 3.5 |
| 3" | 76 | 260 | 145 | 165 | 5.6 |
| 4" | 100 | 300 | 165 | 200 | 9.6 |
Kv VALUES
Kv (m3/h) = Flow rate of water in cubic meter per hour that will generate a pressure drop of 1 bar across the valve
| 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
| 6 | 10 | 24 | 43 | 83 | 130 | 205 | 340 | 520 | 1100 | 1820 |
Advantages
This ball valve is perfectly suited for production lines that permit brief downtime for routine maintenance.
Advantages of 2-piece lockable ball valves vs 1-piece ball valves
Full bore design delivers minimized flow resistance
Diverse end connection options to suit a wide range of working conditions
High-pressure rated models available with superior maximum pressure capacity
Advantages of 2-piece lockable ball valves vs 3-piece ball valves
Large ready stock and shorter production lead times
More competitive pricing for bulk wholesale orders
Why Choose Shangtai
Full Certifications
Our valves are manufactured according to ASME B16.34 standards and hold multiple core certifications including ISO9001 and CE.
Heavier-Duty Product Design
Our valves use more material and thicker body walls than many common market products.
Fast Response
Our technical staff are on standby 24 hours a day. Contact us anytime for urgent issues.
Fast Global Delivery
Shipment is only arranged after production is completed and all tests meet relevant standards. A well-established logistics system ensures fast delivery worldwide.
FAQ
What is the maximum pressure rating of this ball valve?
The maximum pressure rating is 6.3 MPa.
What is the maximum temperature resistance of this ball valve?
The maximum temperature resistance is 280°C, depending on the valve materials and operating conditions.
What type of packaging is used for the valves?
Each valve is packed in a thick corrugated inner carton, with a plywood case used as the outer packaging for protection during transportation.
Can a 2PC Ball Valve with Locking Device be installed vertically?
Yes. Ball valves can generally be installed horizontally or vertically, including with the stem pointing upward or downward, provided the installation is suitable for the valve and the operating conditions. The actuator or handle should also remain accessible for operation.
What is an anti-blowout stem in a ball valve?
An anti-blowout stem is designed to prevent the valve stem from being ejected from the valve body by internal pressure. This design provides additional safety for high-pressure fluid control applications.
Do your valves come with a warranty?
Shangtai provides a 1-year warranty and lifetime technical support after the warranty period.
Is there a minimum order quantity (MOQ)?
MOQ varies depending on the valve model and order requirements. Please contact us for specific MOQ information.
