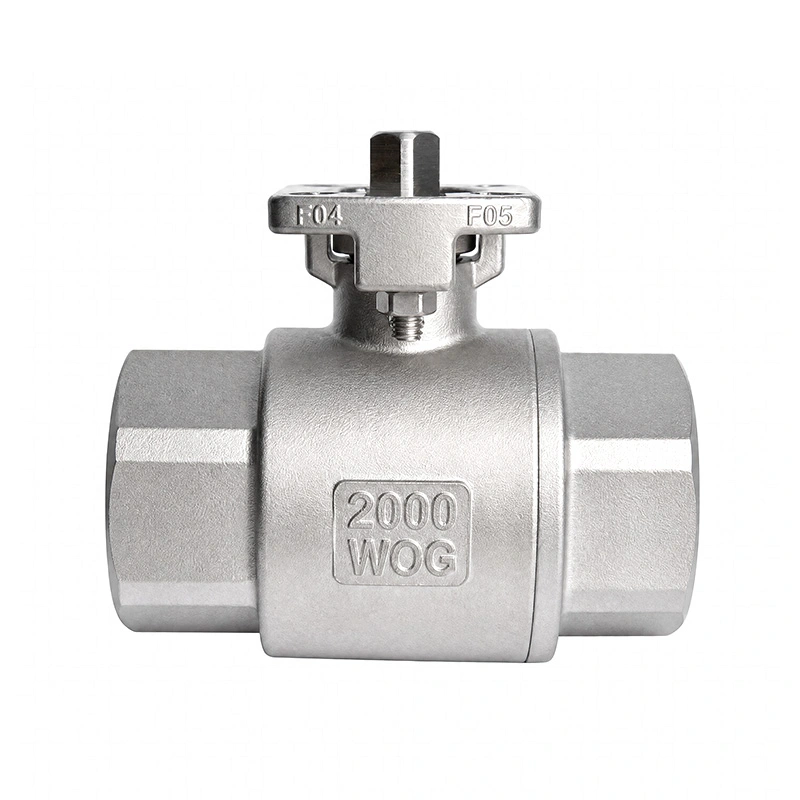

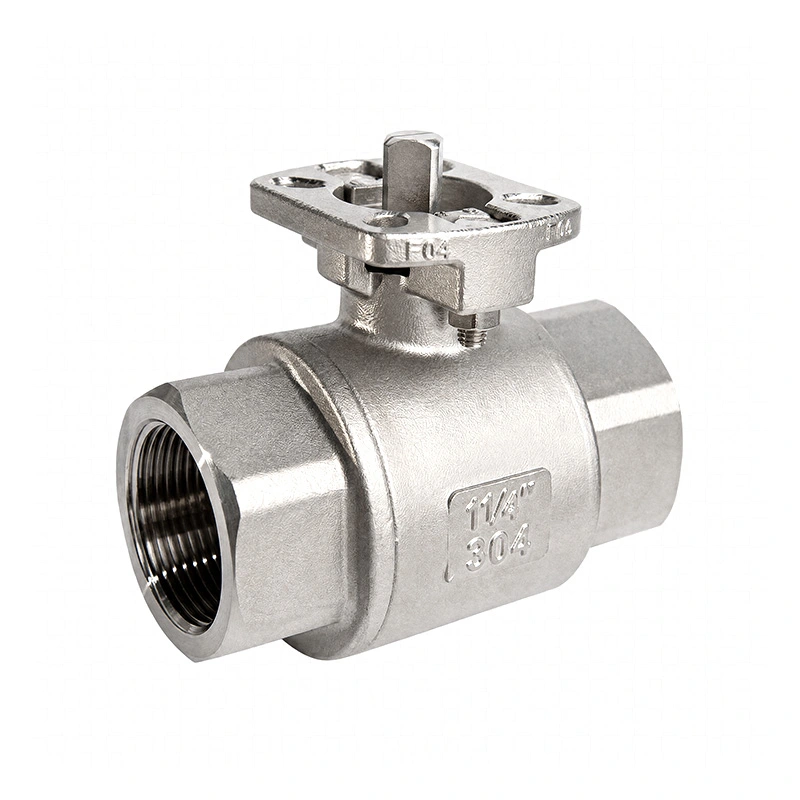

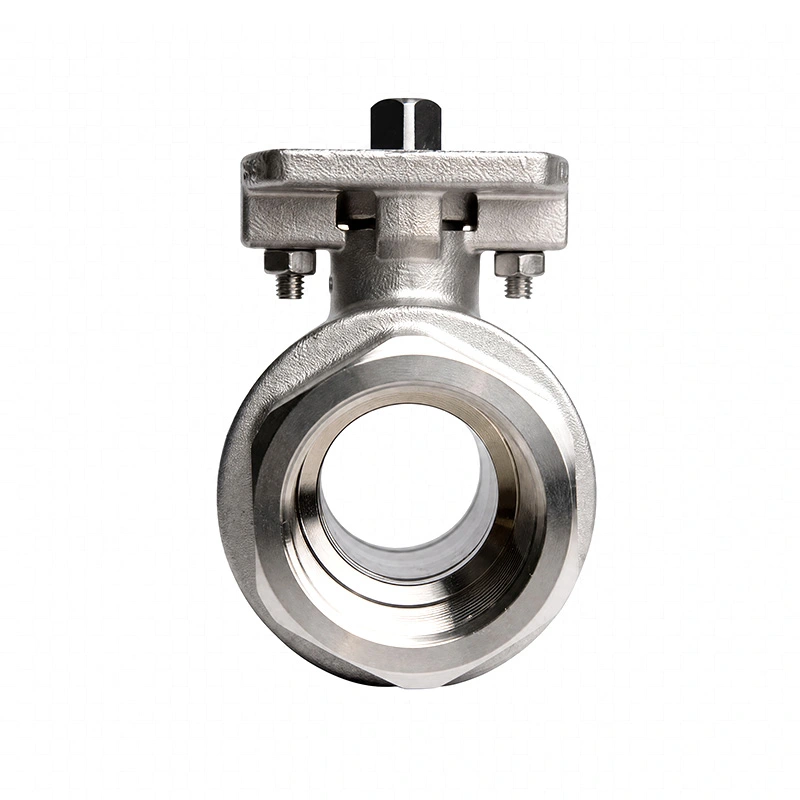

2PC Stainless Steel Direct Mount Ball Valve 2000WOG

Shangtai 2PC Stainless Steel Direct Mount Ball Valve 2000WOG is built for industrial on/off service where higher pressure capability, stainless steel construction, and actuator compatibility are required. Its two-piece body and high mounting platform make it suitable for both manual operation and automated fluid control systems.

In systems operating at pressures around 1900 PSI, forged ball valves are often considered because of their pressure requirements. However, the valve construction and manufacturing process can result in a higher overall cost. This 2000WOG stainless steel ball valve provides an alternative for suitable water, oil, gas, compressed air, and general industrial fluid applications when the actual pressure, temperature, medium, and material requirements are within the valve's specified range.

The valve features a high direct mounting platform for pneumatic or electric actuators. The ISO 5211 mounting interface helps simplify actuator installation, reduces the need for additional brackets and couplings, and provides a more compact valve-and-actuator arrangement.

As a manufacturer, Shangtai Valve handles production, assembly, inspection, and OEM support for this valve. CE and ISO 9001 certificates are available, while valve design, testing, and pressure-temperature requirements are specified according to the applicable standards listed below.

Main Dimensions

Advantages

1. Cost-Saving Alternative to Forged Ball Valves

For applications around 1900PSI, buyers often choose forged ball valves because of pressure concerns. However, forged valves are expensive due to material, machining, and production cost.

This 2000WOG direct mount ball valve is developed to offer a more economical option while still meeting demanding pressure requirements.

2. Designed for Higher Pressure Service

Compared with common 1000WOG or 1500WOG ball valves, the 2000WOG rating gives users more pressure flexibility. It is especially suitable for systems where ordinary ball valves are not enough, but forged valves may be over-budget.

3. Direct Mounting for Actuators

The high mounting platform allows easier installation of pneumatic or electric actuators. This reduces extra mounting components, improves alignment, lowers assembly cost, and makes the valve more compact for automated systems.

4. Stainless Steel Corrosion Resistance

The stainless steel body offers good resistance to corrosion, oxidation, and harsh working environments. It is suitable for many industrial fluids, including water, oil, gas, compressed air, and compatible chemical media.

5. Reliable Shut-Off Performance

The floating ball structure and precision sealing design help provide tight shut-off performance. It is suitable for applications that require reliable open/close control and minimal leakage.

6. Manufacturer Direct Supply

We manufacture this valve directly, allowing better control over product quality, delivery time, customization, and pricing. OEM marking, private label packaging, actuator assembly, and special requirements can be discussed.

7. Certified Quality Control

Our valves are manufactured under a controlled quality management system. CE and ISO 9001 certificates are available, supporting international project and procurement requirements.

Common Mistakes in Use and Correct Methods

FAQ

1. What does 2000WOG mean?

2000WOG refers to a pressure rating for water, oil, and gas service under non-shock conditions. The actual working pressure should be confirmed based on temperature, size, medium, and seat material.

2. Why choose this valve instead of a forged ball valve?

In many 1900 PSI applications, forged valves are used but the price is high. The 2PC Stainless Steel Direct Mount Ball Valve 2000WOG provides a lower-cost alternative while still offering suitable pressure capability for applicable applications.

3. What is the benefit of the direct mount design?

The direct mount design allows an actuator to be installed on the valve more easily. It can reduce extra brackets and couplings, improve alignment, save space, and lower automation installation cost.

4. What media can this valve handle?

It is commonly used for water, oil, gas, compressed air, and compatible industrial fluids. For corrosive chemicals, high temperature media, steam, oxygen, or special gases, material compatibility must be confirmed first.

5. Is it a full port valve?

Yes. This valve features a full port flow passage for on/off fluid control.

6. What materials are available?

Common stainless steel materials include SS304 and SS316. Seat and seal materials can vary depending on temperature and medium requirements.

7. Do you provide certificates?

Yes. Our products comply with applicable international requirements, and CE and ISO 9001 certificates are available.

8. Are you the manufacturer?

Yes. We are the manufacturer of this valve and can manage production, inspection, packaging, and delivery directly.

9. Can you provide OEM service?

Yes. Logo marking, handle color, packaging, labeling, actuator assembly, and other OEM requirements can be customized according to order quantity and project needs.
