When cleanliness, corrosion resistance, compact automation, and dependable shutoff are important, Shangtai provides the 1PC Electropolished Stainless Steel Direct Mount Ball Valve as a practical solution for demanding fluid control systems. Its electropolished stainless steel surface, direct actuator mounting structure, and precision-machined components make it suitable for pharmaceutical, food processing, water treatment, chemical, and automated industrial applications.

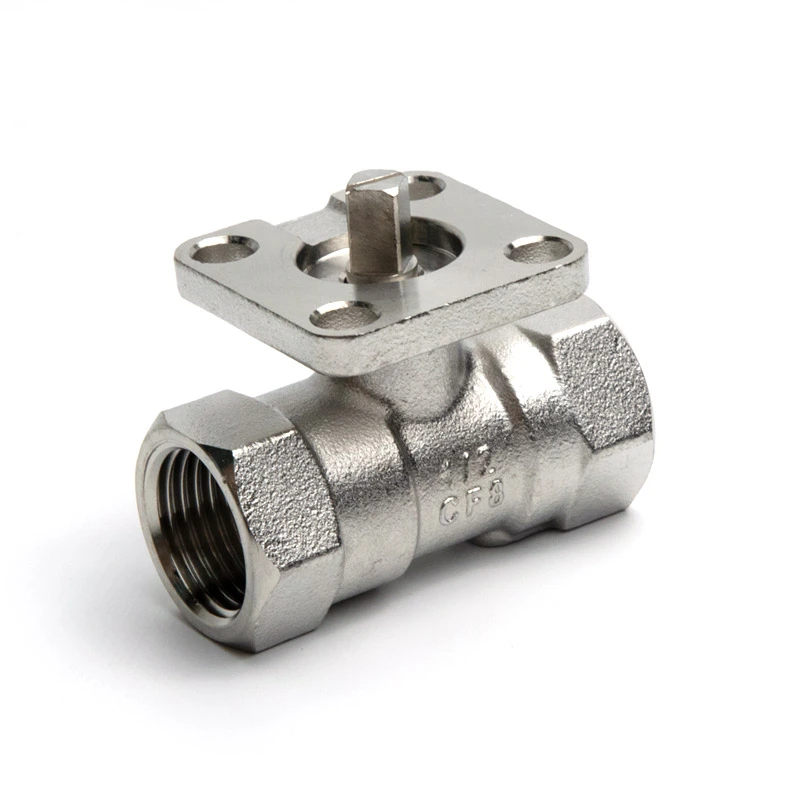

The 1PC Electropolished Stainless Steel Direct Mount Ball Valve combines a one-piece construction with an electropolished surface and an integrated direct-mount platform. Electropolishing creates a smoother and more uniform stainless steel surface, helping reduce residue accumulation and simplify cleaning. The direct-mount structure allows compatible pneumatic or electric actuators to be installed without additional mounting brackets, creating a more compact automation solution. With 304 and 316 stainless steel options, NPT or BSP threaded connections, a 1/4"–2" size range, and pressure capability up to 285 PSI, this type of ball valve can meet a broad range of industrial fluid-control requirements.
Table of Contents
Why Choose an Electropolished Stainless Steel Ball Valve?
How Does the Direct Mount Design Improve Automation?
What Makes the One-Piece Construction Practical?
Where Can This Ball Valve Be Used?
Key Specifications at a Glance
How Should Buyers Select the Right Valve?
Key Advantages for Industrial Buyers
Installation and Maintenance Considerations
Why Consider Shangtai for Your Valve Project?
Why Choose an Electropolished Stainless Steel Ball Valve?
Surface condition is an important consideration when a valve operates in systems where cleanliness, corrosion resistance, and maintenance efficiency matter. Electropolishing removes microscopic irregularities from the stainless steel surface and produces a smoother finish. This can help reduce areas where contaminants or process residues may accumulate.
For applications involving frequent cleaning or demanding hygiene requirements, a smooth valve surface can simplify maintenance. Stainless steel also provides a strong combination of mechanical durability and corrosion resistance, making it suitable for a wide range of industrial environments.
The Shangtai valve is available with 304 stainless steel as a standard material option, while 316 stainless steel configurations can be selected when project conditions require additional corrosion resistance. The product page specifies ASTM A351 CF8 (304) for the body, with stainless steel used for major wetted components and PTFE-based sealing components.
- Smoother electropolished stainless steel surface
- Improved resistance to corrosion and surface contamination
- Easier cleaning and maintenance
- Suitable for cleanliness-sensitive fluid systems
- Available in different stainless steel material configurations
How Does the Direct Mount Design Improve Automation?
Industrial valve automation often requires a reliable connection between the valve and an actuator. Traditional arrangements may require separate brackets or mounting hardware, increasing the number of components and the overall installation footprint.
A direct-mount ball valve integrates an actuator mounting platform into the valve design. Compatible pneumatic or electric actuators can therefore be installed directly, helping simplify the mechanical arrangement. This is particularly useful for equipment manufacturers and system integrators designing compact automated fluid-control assemblies.
The direct-mount structure can provide several practical benefits:
- Compact installation: Eliminates the need for a separate mounting bracket in compatible configurations.
- Fewer components: A simpler connection can reduce additional hardware.
- Automation readiness: Supports integration with pneumatic or electric actuation.
- Flexible operation: Extended handles can also be considered for suitable manual applications.
- Easier system integration: The standardized mounting concept is useful for OEM equipment and automated process systems.
What Makes the One-Piece Construction Practical?
A one-piece ball valve body provides a straightforward construction for applications where a compact and robust valve arrangement is preferred. The valve uses a ball-and-stem operating mechanism to control fluid flow, while the seat and sealing components provide the necessary shutoff function.
Precision machining is also important. Accurate dimensions between the body, ball, stem, and sealing components help support smooth operation and dependable sealing. Shangtai specifies precision-machined components and material inspection as part of its manufacturing approach.
The valve also incorporates an anti-blowout stem and locking-device option. These features can be valuable in industrial installations where controlled operation and mechanical security are important considerations.
Where Can This Ball Valve Be Used?
The combination of electropolished stainless steel, compact construction, and direct actuator mounting makes this valve appropriate for applications where both fluid isolation and automation are required.
Typical application areas include:
- Pharmaceutical equipment: Useful where smooth surfaces and cleanable flow-control components are important.
- Food processing: Suitable for fluid systems requiring corrosion-resistant stainless steel components.
- Water treatment: Appropriate for automated isolation and flow-control points.
- Chemical processing: Stainless steel construction can provide durability in selected process environments.
- Industrial automation: Direct actuator mounting supports automated opening and closing.
- OEM equipment: A compact valve configuration can simplify integration into packaged machinery.
Application suitability should always be evaluated against the actual fluid, pressure, temperature, chemical compatibility, connection standard, and actuator requirements.
Key Specifications at a Glance
The following specifications provide a practical reference for engineers, distributors, OEM buyers, and system integrators evaluating this valve.
| Parameter | Specification |
|---|---|
| Valve Type | 1PC Electropolished Stainless Steel Direct Mount Ball Valve |
| Nominal Size | 1/4" to 2" |
| Pressure Class | CL150 |
| Maximum Pressure | 285 PSI |
| Thread Standards | NPT / BSP |
| Design & Manufacturing Standard | ASME B16.34 |
| Testing Standard | API 598 |
| Body Material | ASTM A351 CF8 (304) |
| Ball & Stem Material | ASTM A182 F304 |
| Seat Material | RPTFE (PTFE + 15% filler) |
| Temperature Range | -25°C to 150°C |
| Port Type | Reduced Port |
For technical selection, buyers should verify the latest dimensional drawings, pressure-temperature ratings, material configuration, and connection requirements before placing an order.
How Should Buyers Select the Right Valve?
Selecting a stainless steel ball valve should involve more than simply matching the nominal pipe size. Engineers should consider the complete operating environment to avoid compatibility or performance issues.
1. Confirm the Connection Standard
The valve supports NPT and BSP threaded configurations. The selected thread standard should match the connected piping or fitting system to avoid installation problems.
2. Check Pressure and Temperature
The specified maximum pressure is 285 PSI, while the listed temperature range is -25°C to 150°C. Actual application conditions should remain within the applicable pressure-temperature rating.
3. Evaluate Material Compatibility
304 and 316 stainless steel offer different levels of corrosion resistance. The process fluid, concentration, temperature, and cleaning chemicals should all be considered when selecting the material.
4. Determine the Operating Method
For automated equipment, confirm whether a pneumatic or electric actuator is preferred. The direct-mount structure can help reduce installation complexity when the actuator is compatible with the valve mounting arrangement.
5. Consider Flow Requirements
This model uses a reduced-port configuration. Buyers should consider the required flow rate and pressure drop rather than selecting a valve based solely on pipe size. The listed Kv values can provide a useful starting point for flow evaluation.
Key Advantages for Industrial Buyers
For buyers comparing stainless steel ball valves, the value of this configuration comes from the combination of surface treatment, construction, automation compatibility, and manufacturing flexibility.
| Feature | Practical Benefit |
|---|---|
| Electropolished Finish | Smoother surface and easier cleaning |
| Stainless Steel Construction | Corrosion resistance and mechanical durability |
| Direct Mount Platform | Simplifies actuator integration |
| One-Piece Body | Compact and straightforward valve construction |
| 304 / 316 Options | Allows material selection for different environments |
| NPT / BSP Threads | Supports different piping connection requirements |
| OEM Customization | Supports customized specifications and bulk requirements |
Installation and Maintenance Considerations
Even a high-quality valve requires appropriate installation and operating practices. Before installation, inspect the threads, sealing surfaces, valve body, and pipeline for contamination or damage. The pipeline should be properly aligned to prevent unnecessary mechanical stress on the valve.
During commissioning, verify that the valve opens and closes smoothly and that the actuator, if installed, operates within the required torque range. Pressure testing should follow the applicable project procedures and safety requirements.
For long-term service, maintenance teams should periodically check:
- External leakage around threaded connections and seals
- Valve operating torque and movement
- Actuator mounting and alignment
- Signs of corrosion or surface damage
- Seat and sealing performance
- Operating pressure and temperature conditions
Following the manufacturer's technical documentation and the applicable industry standards is recommended when installing, testing, or servicing the valve.
Frequently Asked Questions
What is the main benefit of an electropolished stainless steel ball valve?
Electropolishing produces a smoother stainless steel surface that can improve cleanability, reduce surface residue accumulation, and support corrosion resistance. This makes the valve particularly attractive for cleanliness-sensitive industrial applications.
Can the valve be connected to a pneumatic actuator?
Yes. The direct-mount platform is designed to support compatible pneumatic actuators. Electric actuators and suitable extended handles can also be considered according to the operating requirements.
What sizes are available?
The standard size range is 1/4" to 2". Buyers requiring other sizes or customized specifications can discuss their requirements with the manufacturer.
Does the valve support both NPT and BSP threads?
Yes. NPT and BSP threaded connection options are available, allowing the valve to be matched with different piping systems.
What standards are associated with this valve?
The product information specifies ASME B16.34 for design and manufacturing and API 598 for testing and inspection. Project-specific requirements should be confirmed before procurement.
Can Shangtai provide OEM customization?
Yes. Shangtai supports OEM and customized valve requirements, including material selection, specifications, surface treatment, connection standards, and bulk production requirements.
Why Consider Shangtai for Your Valve Project?
The 1PC Electropolished Stainless Steel Direct Mount Ball Valve is designed for buyers who need a combination of smooth stainless steel surface quality, compact valve construction, and convenient automation integration. Its 304/316 stainless steel options, NPT or BSP connections, direct actuator mounting structure, and industrial design make it a versatile choice for fluid-control systems across multiple industries.
Shangtai supports distributors, OEM equipment manufacturers, system integrators, and industrial projects with customized valve solutions and bulk supply capabilities. If you are evaluating valve size, material, pressure rating, connection type, surface treatment, or actuator compatibility, view the 1PC Electropolished Stainless Steel Direct Mount Ball Valve for product details and selection information.
Looking for a reliable stainless steel valve solution for your next project? Share your required size, working medium, pressure, temperature, connection standard, and automation requirements with Shangtai to receive a suitable configuration and technical support. Contact us today to discuss your OEM, customized, or bulk valve requirements and find a practical solution for your fluid-control system.
